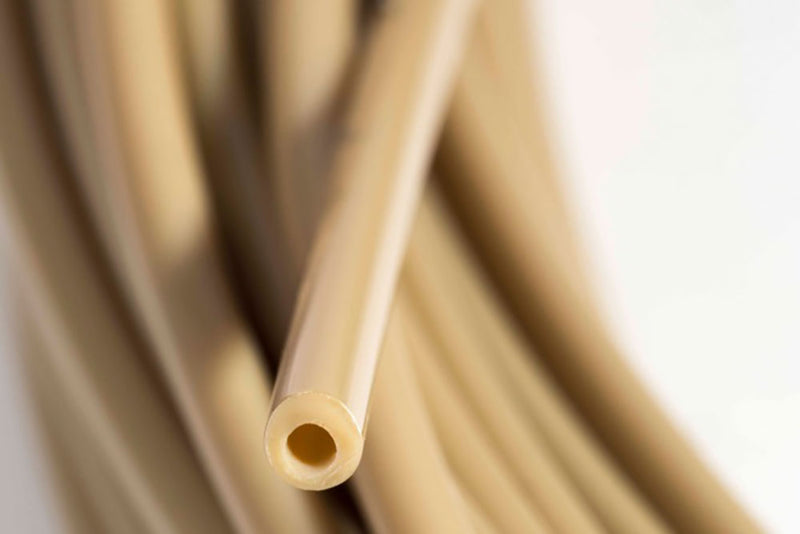

Versilon™ TSPK38-0125-031 Saint Gobain 0.062" ID x 0.125" OD x .032" Wall 250' Package Length - PEEK® Capillary Tubing

TSPK38-0125-031 Versilon™ by Saint Gobain | 0.062" ID x 0.125" OD x .032" Wall | PEEK® Capillary Tubing | 250' Package Length

Save $98.73

$2,151.86

$2,151.86 - $2,151.86

$2,151.86

$2,053.13

$2,053.13 - $2,053.13

$2,053.13

Saint Gobain
Versilon™ PEEK Flexible Capillary Tubing

Versilon PEEK capillary tubing is designed specifically for the demands of high-pressure chromatography (HPLC). More corrosion resistant than stainless steel, Versilon PEEK tubing is strong enough to take the pressure of 5000 psi. Versilon PEEK tubing is close in heat-resistance and chemical- resistance properties compared to PTFE, but it is structurally strong and abrasion-resistant. It does not leach, and it is unaffected by continuous exposure to steam.

No by the foot sales. This is a Packaged Length product.

Quantity

Specifications for Variant SKU: TSPK38-0125-031 Saint Gobain \| 250 \|
Brand:	Versilon
Series:	PEEK
Hose Color(s):	Beige
Internal Diameter:	0.062in
Outer Diameter:	0.125in
Tubing Construction:	Polyetheretherketone
Applicable Specs & Approvals:	Applicable FDA Requirements

SPECIFICATIONS

Other Features:
Application:	Semiconductor industry, Liquid chromatography, Pump and valve components, Seal rings, Labratory	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	PEEK
Reinforcement:	N/A	Cover:	N/A
Temperature Range:	Continuous Service Temp: 480°F	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	FDA
Literature:	Versilon™ PEEK Flexible Capillary Tubing (PDF)
High-pressure demands of chromatography - up to 5000 PSI High Strength Dimensionally Stable Corrosion-resistant Heat resistance Chemical resistance Abrasion-resistant Does not leach Unaffected by continuous exposure to steam Flame Retardant (UL 94 V-O) WARNING: Versilon™ PEEK Flexible Capillary Tubing is not intended as an implant material.

Part Number	Inside Diameter (in.)	Outside Diameter (in.)	Wall Thickness (in.)	Max. Working Pressure* at 73°F (23°C) PSI	Max. Working Pressure* at 392°F (200°C) PSI	Length
TSPK38-0062-026	0.010"	0.062"	0.026"	3337 PSI	860 PSI	250ft
TSPK38-0062-021	0.020"	0.062"	0.021"	2853 PSI	735 PSI	250ft
TSPK38-0062-016	0.030"	0.062"	0.016"	2182 PSI	562 PSI	250ft
TSPK38-0062-011	0.040"	0.062"	0.011"	1449 PSI	373 PSI	250ft
TSPK38-0125-031	0.062"	0.125"	0.032"	2127 PSI	548 PSI	250ft
TSPK38-0125-023	0.080"	0.125"	0.023"	1427 PSI	379 PSI	250ft

* Working pressures are calculated at a 1:4 ratio relative to burst pressure using ASTM D1599.

Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
