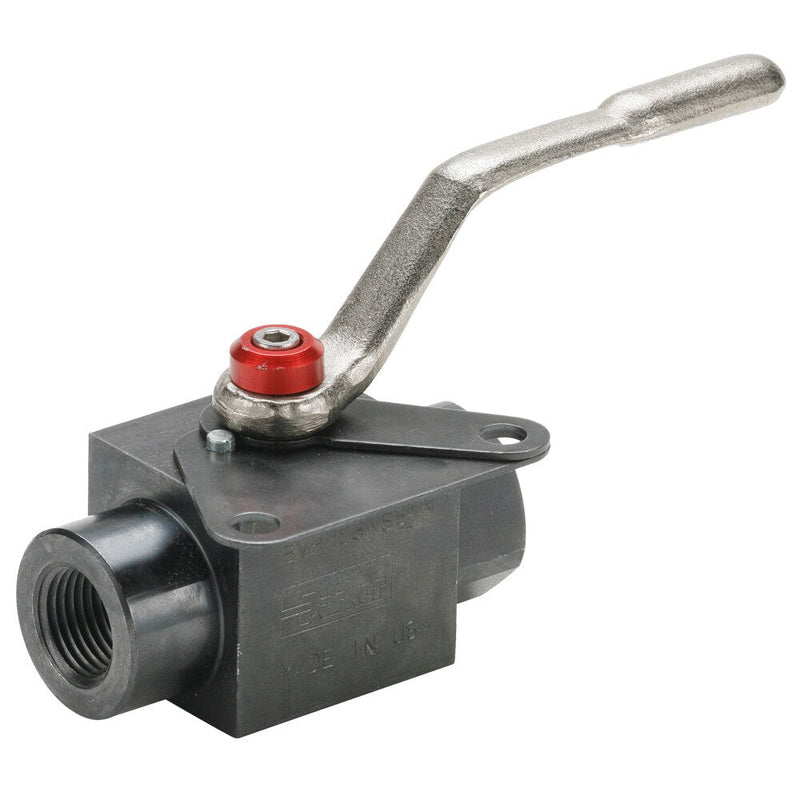

VP500HP-20 by Parker | Ball Valve | 1-1/4" Female NPT Thread | 14.41" Length | Straight | Carbon Steel

VP500HP-20 by Parker | Ball Valve | 1-1/4" Female NPT Thread | 14.41" Length | Straight | Carbon Steel

Save $14.65 Save $14.65
$403.08
$403.08 - $403.08
$403.08
$388.43
$388.43 - $388.43
$388.43

by Parker Hannifin
Ball Valves Carbon Steel Series 500HP, 506HP:6000 PSI Locking-Female-Female Pipe Ends VP500HP
Specifications for Variant SKU: VP500HP-20 Parker
Series: VP500HP Series
Shape (Orientation): Straight
Material(s): Carbon Steel, Delrin, Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Coated, Valved
Product Features:
  • Carbon Steel Phosphate Coated body
  • Steel ball
  • Delrin with Molybdenum Disulphide Seats
  • Nitrile O-rings Stem Seals
  • Steel handle
Style:
  • V-Valve
  • VP-Valve, padlocking handle
Type:
  • 500-Female/Female NPT Ports
  • 506-Female/Female SAE Straight Thread Ports
Material:
  • HP-High Pressure Carbon Steel
Specification:
Temperature Range: -10° to +210° F (-23.3° to 98.8° C)
Pressure Range:
  • 6000 PSI (413.6 bar)* (*Dependent on size)
  • 7250 PSI (9.9 bar)* (*Dependent on size)
Part Number Pipe Thread (NPT) B C H L M N Flow Diameter (D)
VP500HP-12 3/4"-14 .66" 2.24" 6.73" 2.44" 3.75" 4.94" .790"
VP500HP-20 1-1/4"-11.5 .79" 3.38" 12.05" 3.15" 4.72" 6.99" 1.26"
VP500HP-24 1-1/2"-11.5 .89" 4.06" 12.05" 3.35" 5.12" 7.66" 1.50"
VP500HP-32 2"-11.5 .78" 4.79" 12.05" 3.94" 5.50" 8.21" 1.89"

*Locking plate ships separately in the box. Assembly is required.
