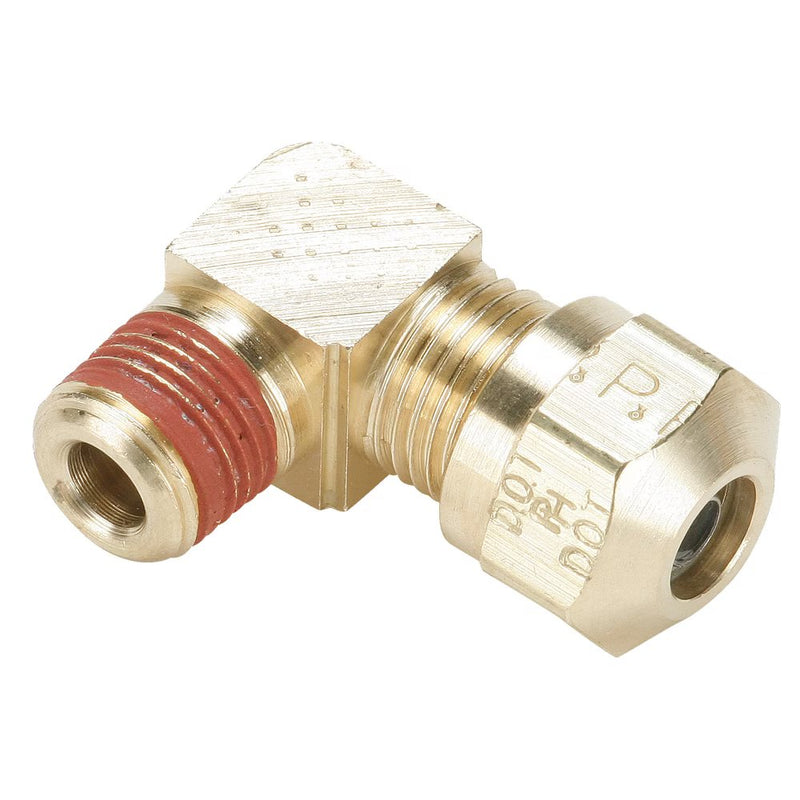

VS269NTA-8-8 by Parker | Air Brake–NTA® Fittings | 1/2" Tube Size x 1/2" Male Pipe Thread x 11/16" Thread | 90° Elbow | Brass | Pack of 10

VS269NTA-8-8 by Parker | Air Brake–NTA® Fittings | 1/2" Tube Size x 1/2" Male Pipe Thread x 11/16" Thread | 90° Elbow | Brass | Pack of 10

Save $102.31 Save $102.31
$255.78
$255.78 - $255.78
$255.78
$153.47
$153.47 - $153.47
$153.47

by Parker Hannifin
Air Brake–NTA® Fittings:Male Elbow VS269NTA

Package Quantity: 10 Units

Specifications for Variant SKU: VS269NTA-8-8 Parker | 10 |
Brand: Air Brake–NTA®
Series: VS269NTA Series
Shape (Orientation): 90° Elbow
Material(s): Brass
Product Features:
  • Brass Body
  • Meets D.O.T. FMVSS571.106 Performance
  • Meets functional Requirements SAE J246 & SAE J1131
  • Pre-applied Thread Sealant
  • Nickel Plated Versions Available for Bio-diesel
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
  • Cab Controls
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: -40° to +200° F (-40° to +93.3° C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size Pipe Thread Straight Thread L M N Flow Diameter (D)
VS269NTA-3-2* 3/16" 1/8" 5/16"-24 .90" .61" .67" .087"
VS269NTA-3-4* 3/16" 1/4" 5/16"-24 .91" .62" .87" .087"
VS269NTA-4-2 3/4" 1/8" 7/16"-24 .95" .62" .67" .137"
VS269NTA-4-4 1/4" 1/4" 7/16"-24 1.00" .68" .87" .137"
VS269NTA-4-6 1/4" 3/8" 7/16"-24 1.06" .73" .86" .137"
VS269NTA-6-2 3/8" 1/8" 17/32"-24 1.19" .73" .75" .217"
VS269NTA-6-4 3/8" 1/4" 17/32"-24 1.25" .79" .92" .217"
VS269NTA-6-6 3/8" 3/8" 17/32"-24 1.30" .84" .91" .217"
VS269NTA-6-8 3/8" 1/2" 17/32"-24 1.40" .90" 1.09" .217"
VS269NTA-8-4 1/2" 1/4" 11/16"-20 1.38" .86" .99" .338"
VS269NTA-8-6 1/2" 3/8" 11/16"-20 1.44" .92" .99" .338"
VS269NTA-8-8 1/2" 1/2" 11/16"-20 1.55" 1.03" 1.18" .338"
VS269NTA-10-6 5/8" 3/8" 13/16"-18 1.49" 1.00" 1.05" .398"
VS269NTA-10-8 5/8" 1/2" 13/16"-18 1.58" 1.09" 1.24" .398"
VS269NTA-10-12 5/8" 3/4" 13/16"-18 1.76" 1.25" 1.32" .398"
VS269NTA-12-8 3/4" 1/2" 1"-18 1.70" 1.19" 1.32" .523"
VS269NTA-12-12 3/4" 3/4" 1"-18 1.77" 1.26" 1.32" .523"

*Meets D.O.T. FMVSS 571.106 specification. No applicable SAE specification for this tube size.
