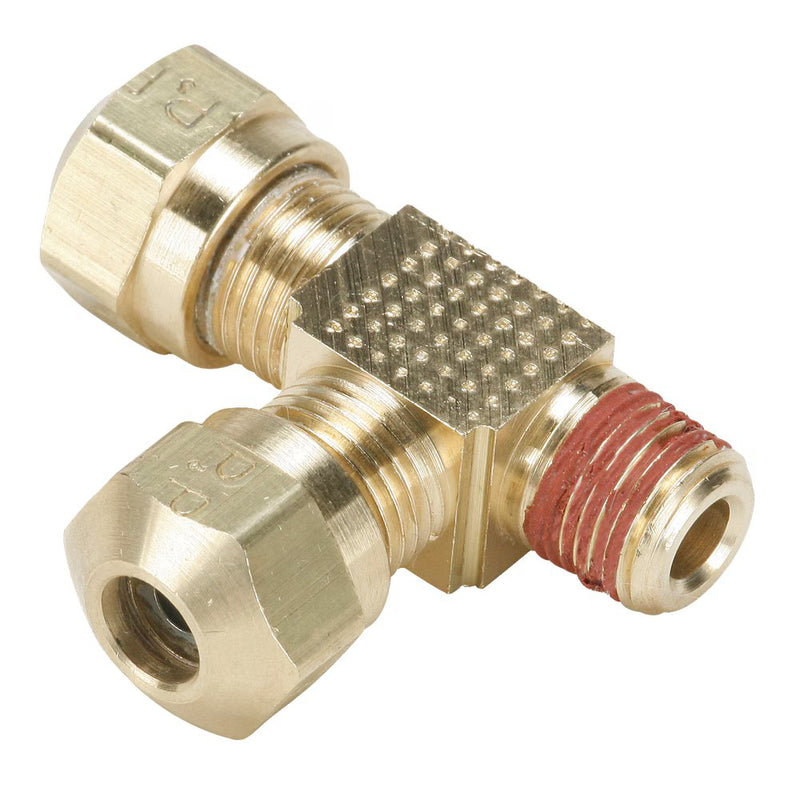

VS271NTA-8-8 by Parker | Air Brake–NTA® Fittings | 1/2" Tube Size x 1/2" Male Pipe Thread x 11/16" Thread | Tee | Brass | Pack of 10

VS271NTA-8-8 by Parker | Air Brake–NTA® Fittings | 1/2" Tube Size x 1/2" Male Pipe Thread x 11/16" Thread | Tee | Brass | Pack of 10

Save $247.91 Save $247.91
$619.77
$619.77 - $619.77
$619.77
$371.86
$371.86 - $371.86
$371.86

by Parker Hannifin
Air Brake–NTA® Fittings:Male Run Tee VS271NTA

Package Quantity: 10 Units

Specifications for Variant SKU: VS271NTA-8-8 Parker | 10 |
Brand: Air Brake–NTA®
Series: VS271NTA Series
Shape (Orientation): Tee
Material(s): Brass
Product Features:
  • Brass Body
  • Meets D.O.T. FMVSS571.106 Performance
  • Meets functional Requirements SAE J246 & SAE J1131
  • Pre-applied Thread Sealant
  • Nickel Plated Versions Available for Bio-diesel
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
  • Cab Controls
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: -40° to +200° F (-40° to +93.3° C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size Pipe Thread Straight Thread L M N Flow Diameter (D)
VS271NTA-4-2 1/4" 1/8" 7/16"-24 .95" .62" .66" .137"
VS271NTA-4-4 1/4" 1/4" 7/16"-24 1.00" .68" .87" .137"
VS271NTA-6-4 3/8" 1/4" 17/32"-24 1.25" .78" .91" .217"
VS271NTA-6-6 3/8" 3/8" 17/32"-24 1.30" .84" .91" .217"
VS271NTA-8-6 1/2" 3/8" 11/16"-24 1.45" .93" .99" .338"
VS271NTA-8-8 1/2" 1/2" 11/16"-20 1.55" 1.03" 1.18" .338"
VS271NTA-10-8 5/8" 1/2" 13/16"-18 1.60" 1.09" 1.24" .398"
