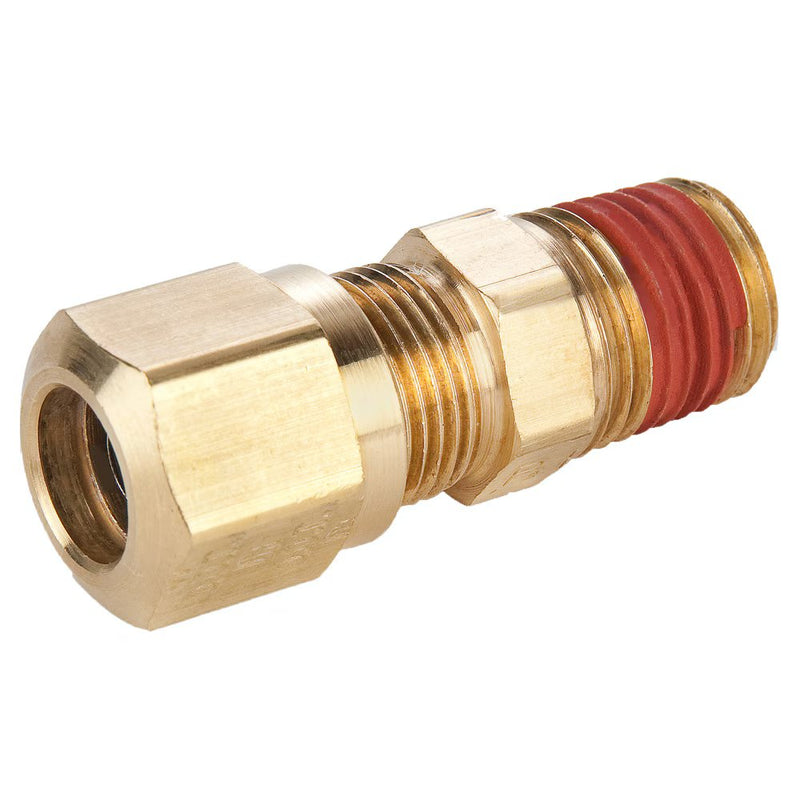

VS68NTA-3-4 by Parker | Air Brake–NTA® Fittings | 3/16" Tube Size Connector x 1/4" Male Pipe Thread x 5/16" Thread | 9/16" Hex | 1.35" Length | Straight | Brass | Pack of 10

VS68NTA-3-4 by Parker | Air Brake–NTA® Fittings | 3/16" Tube Size Connector x 1/4" Male Pipe Thread x 5/16" Thread | 9/16" Hex | 1.35" Length | Straight | Brass | Pack of 10

Save $10.33 Save $10.33
$113.61
$113.61 - $113.61
$113.61
$103.28
$103.28 - $103.28
$103.28

by Parker Hannifin
Air Brake–NTA® Fittings:Male Connector VS68NTA

Package Quantity: 10 Units

Specifications for Variant SKU: VS68NTA-3-4 Parker | 10 |
Brand: Air Brake–NTA®
Series: VS68NTA Series
Shape (Orientation): Straight
Material(s): Brass
Product Features:
  • Brass Body
  • Meets D.O.T. FMVSS571.106 Performance
  • Meets functional Requirements SAE J246 & SAE J1131
  • Pre-applied Thread Sealant
  • Nickel Plated Versions Available for Bio-diesel
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
  • Cab Controls
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: -40° to +200° F (-40° to +93.3° C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size Pipe Thread Straight Thread Hex (C) L M Flow Diameter (D)
VS68NTA-3-1* 3/16" 1/16" 5/16"-24 3/8" 1.16" .87" .087"
VS68NTA-3-2* 3/16" 1/8" 5/16"-24 7/16" 1.15" .86" .087"
VS68NTA-3-4* 3/16" 1/4" 5/16"-24 9/16" 1.35" 1.05" .087"
VS68NTA-4-2 1/7" 1/8" 7/16"-24 7/16" 1.22" .89" .137"
VS68NTA-4-4 1/4" 1/4" 7/16"-24 9/16" 1.43" 1.10" .137"
VS68NTA-4-6 1/4" 3/8" 7/16"-24 11/16" 1.47" 1.14" .137"
VS68NTA-6-2 3/8" 1/8" 17/32"-24 9/16" 1.49" 1.03" .217"
VS68NTA-6-4 3/8" 1/4" 17/32"-24 9/16" 1.67" 1.21" .217"
VS68NTA-6-6 3/8" 3/8" 17/32"-24 11/16" 1.70" 1.24" .217"
VS68NTA-6-8 3/8" 1/2" 17/32"-24 7/8" 1.89" 1.43" .217"
VS68NTA-8-4 1/2" 1/4" 11/16"-20 11/16" 1.85" 1.33" .338"
VS68NTA-8-6 1/2" 3/8" 11/16"-20 11/16" 1.85" 1.33" .338"
VS68NTA-8-8 1/2" 1/2" 11/16"-20 7/8" 2.04" 1.52" .338"
VS68NTA-10-6 5/8" 3/8" 13/16"-18 13/16" 1.88" 1.39" .398"
VS68NTA-10-8 5/8" 1/2" 13/16"-18 7/8" 2.10" 1.58" .398"
VS68NTA-12-6 3/4" 3/8" 1"-18 1" 2.00" 1.49" .440"
VS68NTA-12-8 3/4" 1/2" 1"-18 1" 2.19" 1.68" .523"
VS68NTA-12-12 3/4" 3/4" 1"-18 1-1/8" 2.22" 1.71" .523"

*Meets D.O.T. FMVSS 571.106 specification. No applicable SAE specification for this tube size.
