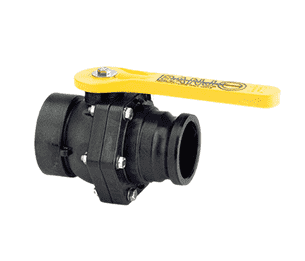

VSF300 Banjo Polypropylene 3" Standard Port Ball Valve "Stubby Valve" - 3" Female NPT x 3" Male Adapter - 2-1/2" Opening Thru Ball - 100 PSI

VSF300 by Banjo | 3" Standard Port Ball Valve "Stubby Valve" | 3" Female NPT x 3" Male Adapter | 2-1/2" Opening Thru Ball | 100 PSI | Polypropylene

Save $13.03 Save $13.03
$117.27
$117.27 - $117.27
$117.27
$104.24
$104.24 - $104.24
$104.24



Banjo Valves - Bolted Ball Valves - 3" Standard Port Ball Valves "Stubby Valve" - Polypropylene - 6 Bolt Valves
Specifications for Variant SKU: VSF300 Banjo
Shape (Orientation): Straight
Ends Configuration: 3in Female NPT, 3in Male Cam & Groove
Material(s): Polypropylene
Seal Material(s): Viton/FKM
Applications:
  • Fluids
Features:
  • Stainless steel bolts
  • Glass reinforced polypropylene
  • FKM (viton type) body seals
  • Three design options for standard and one for full port
  • Unique patented compact design
  • Lightweight
  • All PTFE ball seats
Other Components:
  • 3" Standard Port Ball Valves "Stubby Valve" Replacement Parts

Part Number Port Type End Type Opening Thru Ball Max PSI Package Quantity Dimensions
A B C D E
VSMT300 Standard Port Valve 3" Female NPT x 3" Male NPT 2-1/2" 100 PSI 1 3.63" 2.84" 5.25/9.25" 4.60" 5.09"
VSF300 Standard Port Valve 3" Female NPT x 3" Male Adapter 2-1/2" 100 PSI 1 3.63" 2.84" 5.25/9.25" 4.60" 5.65"
VSFMT300 Standard Port Valve 3" Male NPT x 3" Male Adapter 2-1/2" 225 PSI 1 3.63" 2.84" 5.25/9.25" 4.60" 7.84"

Replacement Parts for VSMT300, VSF300, VSFMT300
Item Part Number Description Quantity Required
3 VS25151B Short Stem 1
4 VS30258 3" Stubby Seat 2
5 V20010SS 3/8" - 16 x 2" SS Bolt 6
6 V20018 3/8" SS Lock Washer 6
7 V20019 3/8" 16 SS Hex Nut 6
10 V25153 Handle-Straight 1
11 V25160 Upper Stem Bushing 1
12 V25163 FKM (viton type) Stem O-Ring 1
13 VS30255 3" Ball 1

Replacement Parts for VSF300
Item Part Number Description Quantity Required
1 VS30254 3" Stubby Body 1
2 VSF30264 3" Stubby "F" End Plate 1

* Short handles: Dimension C = 5.25" NOTE: End plates and body style may vary from picture.

Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
