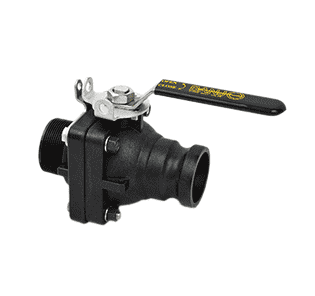

VSFMT204HSFP Banjo Polypropylene 2" Full Port Ball Valve "Stubby Valve" - 2" FP Male Adapter x 2" Male NPT - 2" Opening Thru Ball - 100 PSI w/ SS Ball, Stem & Handle

VSFMT204HSFP by Banjo | 2" Full Port Ball Valve "Stubby Valve" | 2" FP Male Adapter x 2" Male NPT | 2" Opening Thru Ball | 150 PSI with Stainless Steel Ball, Stem & Handle | Polypropylene | Pack of 6

Save $110.76 Save $110.76
$996.84
$996.84 - $996.84
$996.84
$886.08
$886.08 - $886.08
$886.08

Banjo Valves
Bolted Ball Valves - 2" Full Port Ball Valves "Stubby Valve" - Polypropylene - 4 Bolt Valves

Package Quantity: 6 EA

Specifications for Variant SKU: VSFMT204HSFP Banjo | 6 |
Shape (Orientation): Straight
Ends Configuration: 2in Male Cam & Groove, 2in Male NPT
Material(s): Polypropylene
Seal Material(s): Viton/FKM
Applications:
  • Fluids
Features:
  • Stainless steel bolts
  • 100% PTFE ball seats
  • Glass-filled polypropylene
  • FKM (viton type) body seals
  • Unique compact design
  • Lightweight
Part Number Port Type End Type Opening
Thru Ball		 Max PSI Dimensions
A B C
VSMT204FP Full Port Valve 2" Male NPT x 2" Female NPT 2" 200 PSI 6.38" 5.72" 4.25"
VSF204FP Full Port Valve 2" Male Adapter x 2" Female NPT 2" 100 PSI 5.94" 6.50" 4.25"
VS204FP Full Port Valve 2" Female NPT x 2" Female NPT 2" 225 PSI 6.38" 5.91" 4.25"
VSFMT204FP Full Port Valve 2" Male Adapter x 2" Male NPT 2" 150 PSI 6.38" 5.19" 4.25"
VSFMT204HSFP Full Port Valve 2" FP Male Adapter x 2" Male NPT
(with SS Ball, Stem & Handle)		 2" 150 PSI 6.38" 6.50" 4.25"
Replacement Parts for VSFMT204HSFP
Item Part Number Description Package Quantity
1 V20010SS 3/8" - 16 x 2" SS Bolt 4
2 V20018 3/8" SS Lock Washer 4
3 V20019 3/8" 16 SS Hex Nut 4
4 V20060 PFTE Bearing Gasket 2
6 VF25254 2" Full Port Male Adapter Body 1
7 VS20101SS SS Handle Stop 1
10 VS25255SS 2" FP SS Ball 1
11 VS25258AR1 2" FP Stubby Seat 2
12 VS20102SS SS Handle Lock 1
13 VSMT25356 2" FP Stubby MPT End Plate 1
14 VSS15020 SS Handle Nut 1
15 VS20021 Washer 1
16 VS20163 FKM (viton type) O-ring 2

NOTE: End plates and body style may vary from picture.

Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
