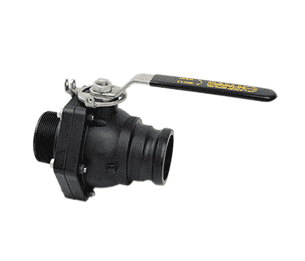

VSFMT300HSFP Banjo Polypropylene 3" Full Port Ball Valve "Stubby Valve" - 3" FP Male Adapter x 3" Male NPT - 3" Opening Thru Ball - 100 PSI (Box of 6) w/SS ball, Stem & Handle

VSFMT300HSFP by Banjo | 3" Full Port Ball Valve "Stubby Valve" | 3" FP Male Adapter x 3" Male NPT | 3" Opening Thru Ball | 100 PSI (Box of 6 with Stainless Steel ball, Stem & Handle | Polypropylene | Pack of 6

Save $1,051.73 Save $1,051.73
$2,629.33
$2,629.33 - $2,629.33
$2,629.33
$1,577.60
$1,577.60 - $1,577.60
$1,577.60

Banjo Valves
Bolted Ball Valves - 3" Full Port Ball Valves "Stubby Valve" - Polypropylene - 6 Bolt Valves

Package Quantity: 6 EA

Specifications for Variant SKU: VSFMT300HSFP Banjo | 6 |
Shape (Orientation): Straight
Ends Configuration: 3in Male Cam & Groove, 3in Male NPT
Material(s): Polypropylene
Seal Material(s): Viton/FKM
Applications:
  • Fluids
Features:
  • Stainless steel bolts
  • Glass reinforced polypropylene
  • FKM (viton type) body seals
  • Unique patented compact design
  • Lightweight
  • All PTFE ball seats
Part Number Port Type End Type Opening
Thru Ball		 Max PSI Dimensions
A B C D E
VSFMT300FP Full Port Valve 3" FP Male Adapter x 3" Male NPT 3" 100 PSI 9.25" 8.19" 7.31" 0.91" 7.34"
VSFMT300HSFP Full Port Valve 3" FP Male Adapter x 3" Male NPT
with Stainless Steel Ball, Stem & Handle		 3" 100 PSI 9.88" 8.19" 7.31" 0.88" 7.31"
Replacement Parts for VSFMT300HSFP
Item Part Number Description Quantity Required
1 V20018 3/8" SS Lock Washer 6
2 V20019 3/8" 16 SS Hex Nut 6
3 V25163 FKM (viton type) Stem O-Ring 1
4 V25160 Upper Stem Bushing 1
5 VS35258 3" FP Stubby Seat 2
6 V35265 FKM (viton type) Valve Body O-Ring 1
7 VSF35254 3" FP Stubby "F" Body 1
9 V20010SS 3/8" - 16 x 2" SS Bolt 6
10 V35255ASS 3" FP SS Ball 1
11 VS30151SS SS Stem 1
12 VS30153SS SS Handle 1
13 VS30101SS SS Handle Stop 1
15 VSS30020 3/4"-16 SS Jam Nut 1
16 V25060 Thrust Washer 1
17 VS30021 Washer 1

* Short handles: Dimension C = 5.25"

Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
