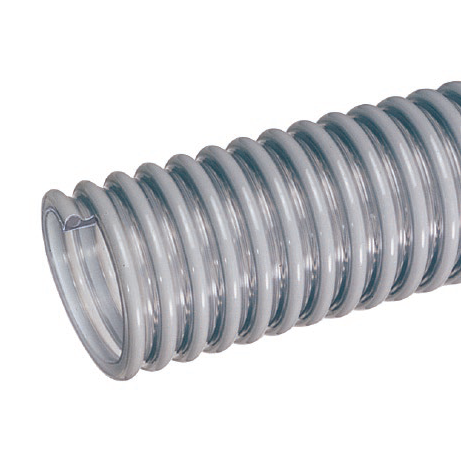

W100X100 Kuriyama Tigerflex W Series Heavy Duty PVC Liquid Suction Hose - 1" - 100ft

W100X100 Tigerflex by Kuriyama | W Series | Heavy Duty Liquid Suction Hose | 1" ID | PVC | 100ft Length

Save $19.56 Save $19.56
$208.89
$208.89 - $208.89
$208.89
$189.33
$189.33 - $189.33
$189.33

Kuriyama Tigerflex W™ Series Heavy Duty PVC Liquid Suction Hose


Package Quantity: 100 FT

Specifications for Variant SKU: W100X100 Kuriyama | 100 |
Brand: Tigerflex
Series: W Series
Hose Color(s): White/Off-White & Clear/Semi-Clear
Internal Diameter: 1in
Outer Diameter: 1.30in
Tubing Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Outer Helix Protection

SPECIFICATIONS

Application: Extreme cold conditions (Sizes 4" - 16"), Fish suction, Gold dredging, Pumps, rental and construction dewatering, Trash, Slurry handling, Water suction - heavy duty, SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: Rigid PVC Helix Cover: N/A
Temperature Range: Sizes 1"-3": -4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C) Sizes 4"-16": -40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • "Cold-Flex" Materials (Sizes 4" - 16") - Hose remains flexible in sub-zero temperatures.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • Convoluted Outer Cover - Provides increased hose flexibility.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
W100X-100 1" 25.4mm 1.30" 33.0mm 55 PSI 35 PSI Full 28 in.Hg 1" 100ft 0.21 lbs
W125X100 1-1/4" 31.7mm 1.60" 40.6mm 50 PSI 30 PSI Full 28 in .Hg 2" 100ft 0.28 lbs
W150X100 1-1/2" 38.1mm 1.85" 47.0mm 50 PSI 30 PSI Full 28 in .Hg 2" 100ft 0.34 lbs
W200X100 2" 50.8mm 2.40" 61.0mm 50 PSI 30 PSI Full 28 in. Hg 3" 100ft 0.52 lbs
W250X100 2-1/2" 63.5mm 2.99" 75.9mm 45 PSI 25 PSI Full 28 in. Hg 4" 100ft 0.77 lbs
W300X100 3" 76.2mm 3.64" 92.5mm 45 PSI 25 PSI Full 28 in. Hg 6" 100ft 1.18 lbs
W400X-100 4" 101.6mm 4.76" 121.0 mm 35 PSI 18 PSI Full 28 in.Hg 8" 100ft 1.92 lbs
W500X100 5" 127.0mm 5.75" 146.0mm 35 PSI 18 PSI 28 in .Hg 25 in .Hg 12" 100ft 2.42 lbs
W500X20 5" 127.0mm 5.75" 146.0mm 35 PSI 18 PSI 28 in .Hg 25 in .Hg 12" 20ft 2.42 lbs
W600X100 6" 152.4mm 7.00" 177.8mm 30 PSI 15 PSI 28 in .Hg 25 in .Hg 14" 100ft 3.76 lbs
W600X20 6" 152.4mm 7.00" 177.8mm 30 PSI 15 PSI 28 in .Hg 25 in .Hg 14" 20ft 3.76 lbs
W800X20 8" 203.2mm 9.18" 233.2mm 30 PSI 15 PSI 28 in. Hg 25 in. Hg 24" 20ft 5.99 lbs
W800X40 8" 203.2mm 9.18" 233.2mm 30 PSI 15 PSI 28 in. Hg 25 in. Hg 24" 40ft 5.99 lbs
W1000X20 10" 254.0mm 11.56" 293.5mm 25 PSI 12 PSI 28 in. Hg 25 in. Hg 39" 20ft 9.74 lbs
W1000X40 10" 254.0mm 11.56" 293.5mm 25 PSI 12 PSI 28 in. Hg 25 in. Hg 39" 40ft 9.74 lbs
W1200X20 12" 304.8mm 13.64" 346.5mm 20 PSI 10 PSI 28 in. Hg 25 in. Hg 59" 20ft 12.77
W1200X40 12" 304.8mm 13.64" 346.5mm 20 PSI 10 PSI 28 in. Hg 25 in. Hg 59" 40ft 12.77
W1400X20* 14" 357.6mm 15.59" 396.0mm 18 PSI 8 PSI 26 in. Hg 23 in. Hg 80" 20ft 13.50
W1600X20* 16" 408.4mm 17.72" 450.0mm 12 PSI 5 PSI 24 in. Hg 20 in. Hg 95" 20ft 16.00
* Non-stock item, minimum order required. Contact customer service for details NOTE: Service life may vary depending on operating conditions and type of material being conveyed. Actual service temperature range is application dependent.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
