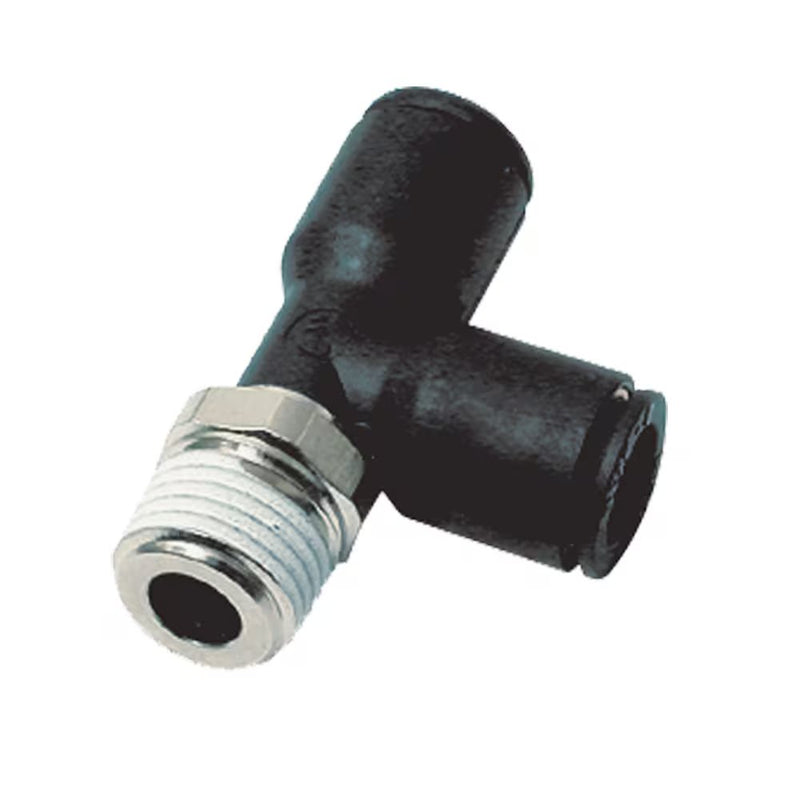

W371PLP-6-4 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Thread Fitting | 3/8" Tube Size x 1/4" Male NPT Thread | 15mm Hex | 1.04" Length (L) | Tee | Glass-Reinforced Nylon | Pack of 10

W371PLP-6-4 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Thread Fitting | 3/8" Tube Size x 1/4" Male NPT Thread | 15mm Hex | 1.04" Length (L) | Tee | Glass-Reinforced Nylon | Pack of 10

Save $8.39 Save $8.39
$92.28
$92.28 - $92.28
$92.28
$83.89
$83.89 - $83.89
$83.89

by Parker Hannifin
Push-to-Connect Fittings:W371PLP Male Run Tee - NPT

Package Quantity: 10 Units

Specifications for Variant SKU: W371PLP-6-4 Parker | 10 |
Series: 371PLP Series
Shape (Orientation): Tee
Material(s): Glass-Reinforced Nylon, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Corrosion Resistance, Chemical Resistance, Silicone Free
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number Tube Size Thread NPT / UNF Hex (C) L H H1
371PLP-2-0 1/8" 10-32" 8 mm .57" .92" .35"
W371PLP-2-1 1/8" 1/16" 10 mm .57" .93" .35"
W371PLP-2-2 1/8" 1/8" 11 mm .57" .93" .35"
371PLP-4M-0 5/32" 10-32" 8 mm .57" 1.02" .45"
W371PLP-4M-2 5/32" 1/8" 11 mm .57" .93" .53"
W371PLP-4M-4 5/32" 1/4" 14 mm .57" .94" .37"
W371PLP-3-2 3/16" 1/8" 11 mm .85" 1.31" .45"
W371PLP-4-2 1/4" 1/8" 11 mm .69" 1.16" .45"
W371PLP-4-4 1/4" 1/4" 14 mm .69" 1.12" .41"
W371PLP-4-6 1/4" 3/8" 18 mm .69" 1.14" .43"
W371PLP-8M-2 5/16" 1/8" 11 mm .91" 1.38" .49"
W371PLP-8M-4 5/16" 1/4" 14 mm .91" 1.34" .45"
W371PLP-8M-6 5/16" 3/8" 18 mm .91" 1.36" .47"
W371PLP-6-2 3/8" 1/8" 15 mm 1.04" 1.63" .60"
W371PLP-6-4 3/8" 1/4" 15 mm 1.04" 1.63" .60"
W371PLP-6-6 3/8" 3/8" 18 mm 1.04" 1.60" .55"
W371PLP-6-8 3/8" 1/2" 22 mm 1.04" 1.63" .59"
W371PLP-8-4 1/2" 1/4" 20 mm 1.38" 2.17" .79"
W371PLP-8-6 1/2" 3/8" 20 mm 1.38" 2.17" .79"
W371PLP-8-8 1/2" 1/2" 24 mm 1.38" 2.07" .79"
