Dixon Valve

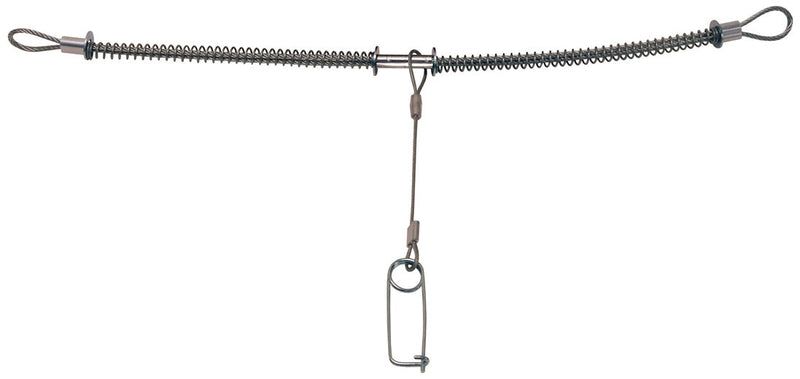

King Cable® | Safety Cable | with Safety Clip & Lanyard for Air King® Couplings

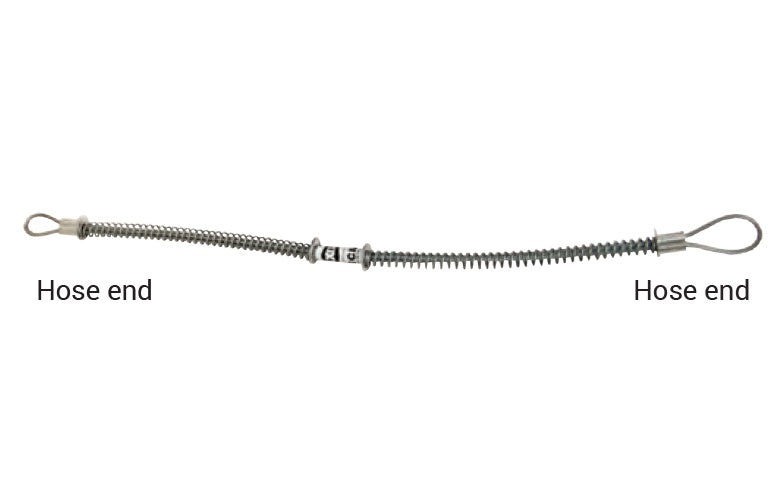

When hose, couplings or clamps fail, or there is an accidental separation of the assembly, King safety cables minimize damage to equipment and injuries to operators.

Quantity

Specifications for Variant SKU: WB1C Dixon
Brand:	King Cable
Series:	WB Series

Features:
King cable is the low cost answer to eliminate injuries caused by broken air hose connections. King safety cable reaches across the hose fittings to provide standby safety for hose. Spring-loaded loops in the cable ends open easily to pass over the couplings for a firm grip on the hose. Thoroughly tested with years of service. A positive safeguard for air hose connections - helps you meet today's safety standards. Highly resistant to rust and corrosion.
Construction:
Wire Rope: Galvanized Carbon Steel Ferrules: Aluminum Springs: Galvanized Carbon Steel
Installation:

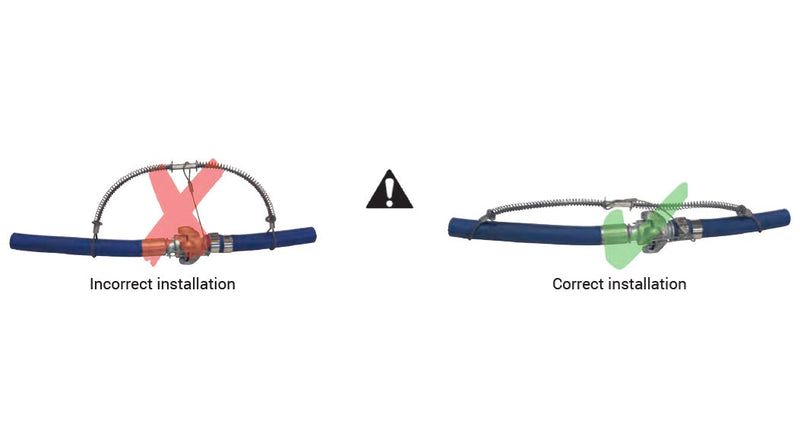

Must be installed in the extended position (no slack). No tools needed - easy to install and remove. Cables are shipped with safety restraint labels attached.
Safety Notes:
King Safety cable must be installed in the extended position (no slack). The Canada Occupational Safety and Health regulations Part XIII, 13:6b states: "Where an air hose is connected to a portable air powered tool used by an employee, a restraining device shall be attached to all hose connections, in order to prevent injury to an employee in the even of an accidental disconnection of a hose."

Steel Part Number	Description	Hose I.D.	Cable	Length	Maximum Working Pressure
WSR1C	WSR1 with safety clip and lanyard used to lock Air King® couplings	1/2" - 1-1/4"	1/8"	20-1/4"	200 PSI
WB1C	WB1 with safety clip and lanyard used to lock Air King couplings	1/2" - 1-1/4"	1/8"	20-1/4"	200 PSI
WSR1E	WSR1 with stainless steel safety marine eye used to connect safety cable to a bolt on tool	1/2" - 1-1/4"	1/8"	20-1/4"	200 PSI
WA2B	WA2 with bronze/copper ferrule for special environmental conditions	1-1/2" - 3"	1/4"	38"	200 PSI
