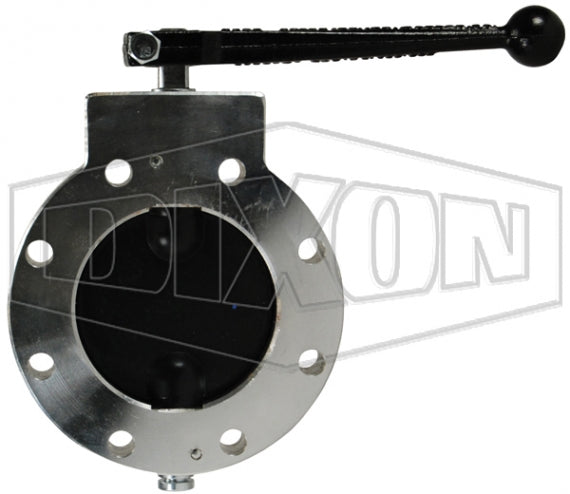

WD401ALVB by Dixon Valve | Betts Wet-R-Dri™ | Manual Butterfly Valve | 4" TTMA Flange | FKM-B Disc | Aluminum

Save $31.15

$303.04

$303.04 - $303.04

$303.04

$271.89

$271.89 - $271.89

$271.89

Dixon Valve & Coupling
Betts Wet-R-Dri™ | Butterfly Valves

Designed for handling liquid, gaseous, or dry products.

Quantity

Specifications for Variant SKU: WD401ALVB Dixon
Brand:	Betts Wet-R-Dri
Shape (Orientation):	Straight
Ends Configuration:	4in TTMA Flange, 4in TTMA Flange, Some Ends Match
Material(s):	Aluminum

Features:
Has a positive stop in the open and closed position. Detent spring and ball assist in holding the disc in the open and closed position. Drilling fits TTMA recommended standards. Opens by turning hand 1/4 turn counter clockwise. Fuel Compatability: Gasoline and diesel, up to E100 and B100 biofuels.
Materials:
Extruded aluminum body. FKM-B disc.
Specifications:
Temperature range: 0°F to 400°F (-17°C to 204°C)

Part Number	Butterfly Valve Type	Size	Max Working Pressure	Replacement Handle
WD201ALVB	Manual	2"	75 PSI	28967ALEY
WD301ALVB	Manual	3"	75 PSI	28967ALEY
WD401ALVB	Manual	4"	75 PSI	28967ALEY
WD501ALV	Manual	5"	75 PSI	28967ALEY
WD601ALV	Manual	6"	75 PSI	25933AL
WD801ALV	Manual	8"	75 PSI	25933AL

WD206ALVB	Metering	2"	75 PSI	28981ALEY
WD306ALVB	Metering	3"	75 PSI	28981ALEY
WD406ALVB	Metering	4"	75 PSI	28981ALEY
WD506ALV	Metering	5"	75 PSI	28981ALEY
WD606ALV	Metering	6"	75 PSI	26287AL
WD806ALV	Metering	8"	75 PSI	26287AL

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.

Shop Parts by Dixon Valve & Coupling
