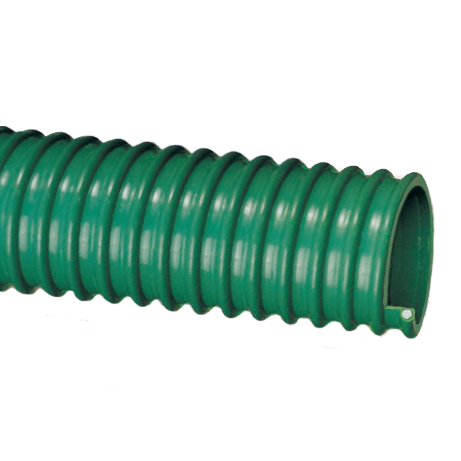

WG300X100 Kuriyama Tigerflex WG Series Heavy Duty PVC Liquid Suction Hose - 3" - 100ft

WG300X100 Tigerflex by Kuriyama | WG Series | Heavy Duty Liquid Suction Hose | 3" ID | PVC | 100ft Length

Save $316.80 Save $316.80
$1,108.80
$1,108.80 - $1,108.80
$1,108.80
$792.00
$792.00 - $792.00
$792.00

Kuriyama Tigerflex WG™ Series Heavy Duty PVC Liquid Suction Hose

Package Quantity: 100 FT

Specifications for Variant SKU: WG300X100 Kuriyama | 100 |
Brand: Tigerflex
Series: WG Series
Hose Color(s): Green
Internal Diameter: 3in
Outer Diameter: 3.64in
Tubing Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Outer Helix Protection

SPECIFICATIONS

Application: Fish suction, Irrigation lines, Trash, Pumps, Rental and construction dewatering, Rock dusting, Water Suction - heavy duty SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: Rigid PVC Helix Cover: N/A
Temperature Range: -4 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Highly Durable PVC Tube - Formulated from highly durable PVC compound for increased abrasion and tear resistance.
  • Convoluted Outer Cover - Provides increased hose flexibility.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
WG150X100 1-1/2" 38.1mm 1.85" 47.0mm 50 PSI 25 PSI Full 28 in.Hg 2" 100ft 0.34 lbs
WG200X100 2" 50.8mm 2.40" 61.0mm 50 PSI 25 PSI Full 28 in .Hg 3" 100ft 0.52 lbs
WG300X100 3" 76.2mm 3.64" 92.5mm 45 PSI 25 PSI Full 28 in .Hg 6" 100ft 1.18 lbs
WG400X100 4" 101.6mm 4.76" 120.9mm 35 PSI 18 PSI Full 28 in .Hg 8" 100ft 1.93 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.
