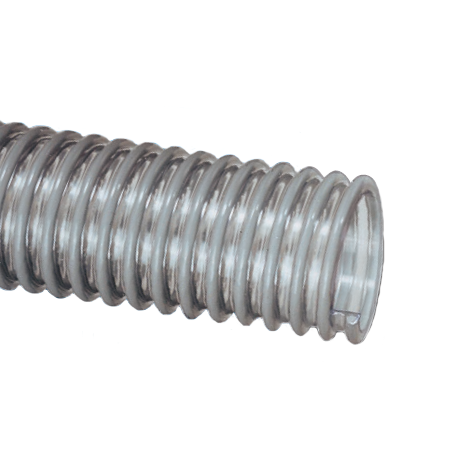

WH150X100 Kuriyama Tigerflex WH Series Standard Duty PVC Liquid Suction Hose - 1-1/2" - 100ft

WH150X100 Tigerflex by Kuriyama | WH Series | Standard Duty Liquid Suction Hose | 1-1/2" ID | PVC | 100ft Length

Save $21.63 Save $21.63
$229.63
$229.63 - $229.63
$229.63
$208.00
$208.00 - $208.00
$208.00

Kuriyama Tigerflex WH™ Series Standard Duty PVC Liquid Suction Hose


Package Quantity: 100 FT

Specifications for Variant SKU: WH150X100 Kuriyama | 100 |
Brand: Tigerflex
Series: WH Series
Hose Color(s): White/Off-White & Clear/Semi-Clear
Internal Diameter: 1.50in
Outer Diameter: 1.80in
Tubing Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Outer Helix Protection

SPECIFICATIONS

Application: Drain lines,Dust collection, Gold dredging, Water suction - standard duty SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: Rigid PVC Helix Cover: N/A
Temperature Range: -4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Transparent Construction - "See-the-flow." Allows for visual conformation of material flow.
  • Convoluted Outer Cover - Provides increased hose flexibility.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
WH100X100 1" 25.4mm 1.22" 31.0mm 45 PSI 15 PSI Full 24 in.Hg 1" 100ft 0.15 lbs
WH125X100 1-1/4" 31.8mm 1.54" 39.2mm 40 PSI 12 PSI Full 24 in .Hg 1" 100ft 0.20 lbs
WH150X100 1-1/2" 38.1mm 1.80" 45.7mm 40 PSI 12 PSI Full 24 in .Hg 1.5" 100ft 0.25 lbs
WH200X100 2" 50.8mm 2.32" 58.7mm 35 PSI 10 PSI 26 in .Hg 20 in .Hg 2.5" 100ft 0.31 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
