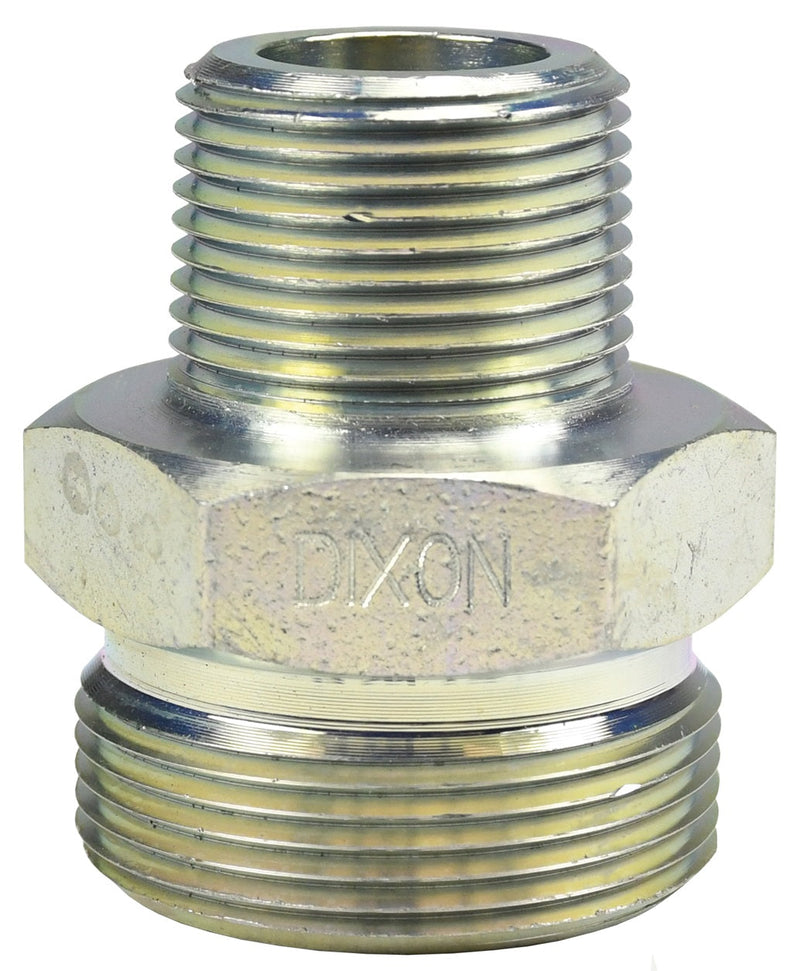

WM13 by Dixon Valve | Boss® Washer Seal | Male Spud | 1" Male NPT x Wing Nut Thread | Plated Steel

Name: WM13 by Dixon Valve | Boss® Washer Seal | Male Spud | 1" Male NPT x Wing Nut Thread | Plated Steel
Brand: Dixon
SKU: WM13 Dixon
Price: 18.88 USD
Availability: InStock

$17.06 - $17.06

$17.06

$18.88

$18.88 - $18.88

$18.88

Dixon Valve
Boss® | Washer Seal Male Spud

Boss couplings are all-purpose hose couplings, universally recommended for steam hose connections. They are also widely used for air, water, fluid petroleum, chemicals and liquid petroleum gas up to 1" ID.

Boss couplings can be applied to many types of rubber, synthetic, plastic, metallic or semi-metallic hose.

Quantity

Specifications for Variant SKU: WM13 Dixon
Brand:	Boss
Shape (Orientation):	Straight

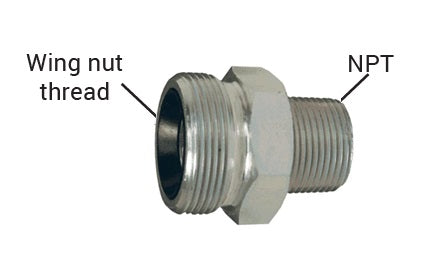

Ends Configuration:	1in Male NPT, 1in GJ Wing Nut Thread
Material(s):	Steel

Features:
Easy to seal. A Klingersil® C-4401 washer is inserted between the stem and spud. The spud part of the coupling serves as one half of the connection and is usually fixed to the equipment. The stem part that is clamped to the hose is the other half. The two halves are connected or disconnected by rotating the wing nut on the spud. A Leakproof seal forms by rotating the wing nut and hammering it tight.
Use:
Boss couplings supply a convenient threaded fitting to connect two lengths of hose, or a single length to a male or female threaded outlet. Use with Boss Washer Seal fittings.
Specifications:
Recommended for steam service up to 450°F (232°C).
Safety Notes:
Worn-out hose couplings can be dangerous. They should be checked regularly and replace when necessary. Each coupling user should review applications and add safety devices where indicated. Note. Pressurized steam is an extremely dangerous commodity. Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used! Never use an unapproved item for steam service. Always follow the manufacturer's product recommendations for pressurized steam handling.

Plated Steel Part Number	Plated Iron Part Number	Male NPT Thread Size
WM3	-	1/2"
WM8	-	3/4"
WM13	-	1"
-	WM18	1-1/4"
-	WM23	1-1/2"
-	WM28	2"
-	WM38	3"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
