WOR150X100 Kuriyama Tigerflex WOR Series Heavy Duty Oil Resistant PVC Suction Hose - 1-1/2" - 100ft

WOR150X100 Tigerflex by Kuriyama | WOR Series | Heavy Duty Oil Resistant Suction Hose | 1-1/2" ID | PVC | 100ft Length

Save $36.44

$364.44

$364.44 - $364.44

$364.44

$328.00

$328.00 - $328.00

$328.00

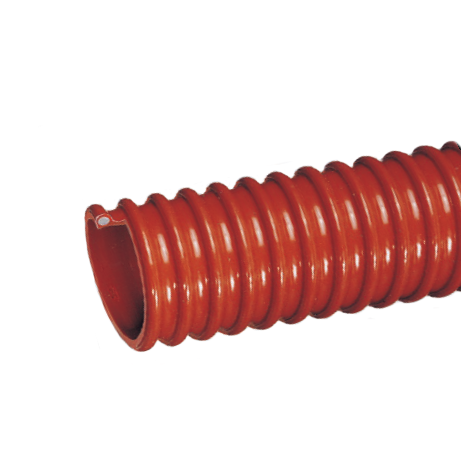

Kuriyama Tigerflex WOR™ Series Heavy Duty Oil Resistant PVC Suction Hose

Package Quantity: 100 FT

Quantity

Specifications for Variant SKU: WOR150X100 Kuriyama \| 100 \|
Brand:	Tigerflex
Series:	WOR Series
Hose Color(s):	Red
Internal Diameter:	1.50in
Outer Diameter:	1.92in
Tubing Construction:	PVC
Applicable Specs & Approvals:	RoHS Compliant
Special Properties:	Outer Helix Protection

SPECIFICATIONS

Other Features:
Application:	Environmental clean-up, Oil skimming, Oil slurries, Oil suction, Vapor recovery - hydrocarbon emmissions	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Oil Resistant PVC
Reinforcement:	Rigid PVC Helix	Cover:	N/A
Temperature Range:	5 deg. F (-15 deg. C) to 150 deg. F (+65.5 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	RoHS(10)
Oil Resistant PVC - Made with special oil resistant compounds which exhibit medium resistance to oil and other hydrocarbons. Convoluted Outer Cover - Provides increased hose flexibility.

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Approx. Bending Radius	Standard Length	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
WOR150X100	1-1/2"	38.1mm	1.92"	48.8mm	50 PSI	25 PSI	28 in .Hg	24 in .Hg	3"	100ft	0.31 lbs
WOR200X100	2"	50.8mm	2.40"	61.0mm	40 PSI	20 PSI	28 in .Hg	24 in .Hg	4"	100ft	0.50 lbs
WOR300X100	3"	76.2mm	3.64"	92.5mm	40 PSI	20 PSI	28 in .Hg	24 in .Hg	6"	100ft	1.17 lbs
WOR400X100	4"	101.6mm	4.72"	119.9mm	35 PSI	18 PSI	28 in .Hg	22 in .Hg	10"	100ft	1.74 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
