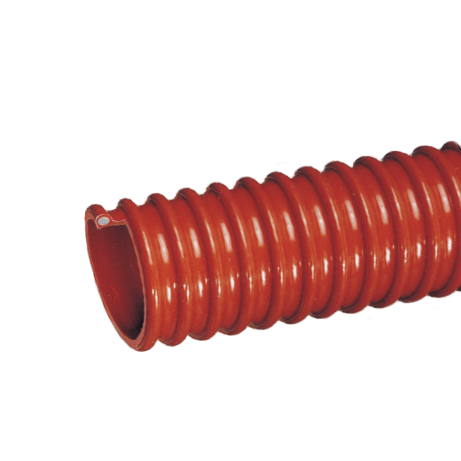

WOR300X100 Kuriyama Tigerflex WOR Series Heavy Duty Oil Resistant PVC Suction Hose - 3" - 100ft

WOR300X100 Tigerflex by Kuriyama | WOR Series | Heavy Duty Oil Resistant Suction Hose | 3" ID | PVC | 100ft Length

Save $101.63 Save $101.63
$1,016.30
$1,016.30 - $1,016.30
$1,016.30
$914.67
$914.67 - $914.67
$914.67

Kuriyama Tigerflex WOR™ Series Heavy Duty Oil Resistant PVC Suction Hose


Package Quantity: 100 FT

Specifications for Variant SKU: WOR300X100 Kuriyama | 100 |
Brand: Tigerflex
Series: WOR Series
Hose Color(s): Red
Internal Diameter: 3in
Outer Diameter: 3.64in
Tubing Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Outer Helix Protection

SPECIFICATIONS

Application: Environmental clean-up, Oil skimming, Oil slurries, Oil suction, Vapor recovery - hydrocarbon emmissions SAE Rating: N/A
Other Ratings: N/A Tube: Oil Resistant PVC
Reinforcement: Rigid PVC Helix Cover: N/A
Temperature Range: 5 deg. F (-15 deg. C) to 150 deg. F (+65.5 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Oil Resistant PVC - Made with special oil resistant compounds which exhibit medium resistance to oil and other hydrocarbons.
  • Convoluted Outer Cover - Provides increased hose flexibility.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
WOR150X100 1-1/2" 38.1mm 1.92" 48.8mm 50 PSI 25 PSI 28 in .Hg 24 in .Hg 3" 100ft 0.31 lbs
WOR200X100 2" 50.8mm 2.40" 61.0mm 40 PSI 20 PSI 28 in .Hg 24 in .Hg 4" 100ft 0.50 lbs
WOR300X100 3" 76.2mm 3.64" 92.5mm 40 PSI 20 PSI 28 in .Hg 24 in .Hg 6" 100ft 1.17 lbs
WOR400X100 4" 101.6mm 4.72" 119.9mm 35 PSI 18 PSI 28 in .Hg 22 in .Hg 10" 100ft 1.74 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.

Shop Parts by Kuriyama
