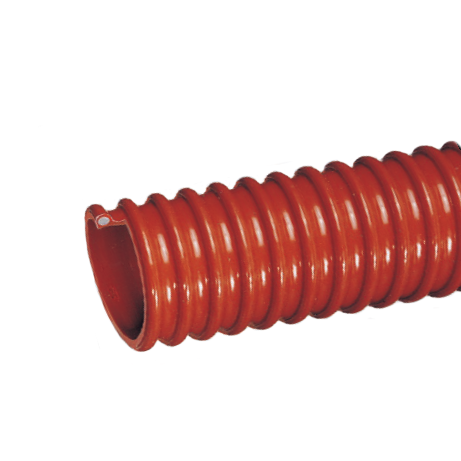

WOR400X100 Kuriyama Tigerflex WOR Series Heavy Duty Oil Resistant PVC Suction Hose - 4" - 100ft

WOR400X100 Tigerflex by Kuriyama | WOR Series | Heavy Duty Oil Resistant Suction Hose | 4" ID | PVC | 100ft Length

Save $158.88 Save $158.88
$1,594.08
$1,594.08 - $1,594.08
$1,594.08
$1,435.20
$1,435.20 - $1,435.20
$1,435.20

Kuriyama Tigerflex WOR™ Series Heavy Duty Oil Resistant PVC Suction Hose


Package Quantity: 100 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: WOR400X100 Kuriyama | 100 |
Brand: Tigerflex
Series: WOR Series
Hose Color(s): Red
Internal Diameter: 4in
Outer Diameter: 4.72in
Tubing Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Outer Helix Protection

SPECIFICATIONS

Application: Environmental clean-up, Oil skimming, Oil slurries, Oil suction, Vapor recovery - hydrocarbon emmissions SAE Rating: N/A
Other Ratings: N/A Tube: Oil Resistant PVC
Reinforcement: Rigid PVC Helix Cover: N/A
Temperature Range: 5 deg. F (-15 deg. C) to 150 deg. F (+65.5 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Oil Resistant PVC - Made with special oil resistant compounds which exhibit medium resistance to oil and other hydrocarbons.
  • Convoluted Outer Cover - Provides increased hose flexibility.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
WOR150X100 1-1/2" 38.1mm 1.92" 48.8mm 50 PSI 25 PSI 28 in .Hg 24 in .Hg 3" 100ft 0.31 lbs
WOR200X100 2" 50.8mm 2.40" 61.0mm 40 PSI 20 PSI 28 in .Hg 24 in .Hg 4" 100ft 0.50 lbs
WOR300X100 3" 76.2mm 3.64" 92.5mm 40 PSI 20 PSI 28 in .Hg 24 in .Hg 6" 100ft 1.17 lbs
WOR400X100 4" 101.6mm 4.72" 119.9mm 35 PSI 18 PSI 28 in .Hg 22 in .Hg 10" 100ft 1.74 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.
