WSTF200X100 Kuriyama Tigerflex WSTF Series Food Grade PVC Fabric Reinforced Suction & Discharge Hose - 2" - 100ft

WSTF200X100 Tigerflex by Kuriyama | WSTF Series | Food Grade Fabric Reinforced Suction & Discharge Hose | 2" ID | PVC | 100ft Length Length

Save $69.33 Save $69.33
$693.33
$693.33 - $693.33
$693.33
$624.00
$624.00 - $624.00
$624.00

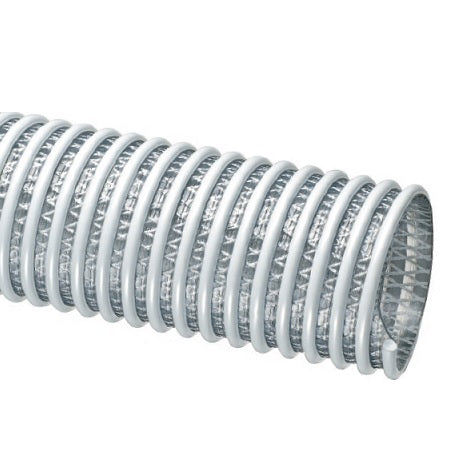

Kuriyama Tigerflex WSTF™ Series Food Grade PVC Fabric Reinforced Suction & Discharge Hose


Package Quantity: 100 FT

Specifications for Variant SKU: WSTF200X100 Kuriyama | 100 |
Brand: Tigerflex
Series: WSTF Series
Hose Color(s): White/Off-White & Clear/Semi-Clear
Internal Diameter: 2in
Outer Diameter: 2.60in
Tubing Construction: PVC
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements, RoHS Compliant
Special Properties: Outer Helix Protection

SPECIFICATIONS

Application: Food grade liquids such as potable water, beer,wine and juice Food grade material handling, Ice transfer, Suction and discharge, Water suction - heavy duty SAE Rating: N/A
Other Ratings: N/A Tube: Double-ply PVC
Reinforcement: Polyester Fabric Reinforcement and Rigid PVC Helix. Cover: N/A
Temperature Range: -4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications 3A(01), BSE/TSE(02), FDA(03), FDA(06), RoHS(10), USDA(11)
Other Features:
  • Food Grade Materials - Hose complies with applicable FDA(03) and 3-A(01) requirements. Hose approved by USDA(11) for use in meat and poultry plants.
  • Fabric Reinforcement - designed with high tensile strength, food grade, FDA(06) polyester yarn jacket to handle both suction, and higher pressure discharge applications.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
WSTF150X100 1-1/2" 38.1mm 1.95" 49.5mm 100 PSI 65 PSI Full 28in. Hg 2.5" 100ft 0.42 lbs
WSTF200X100 2" 50.8mm 2.60" 66.0mm 100 PSI 65 PSI Full 28in. Hg 4" 100ft 0.74 lbs
WSTF300X100 3" 76.2mm 3.62" 92.0mm 70 PSI 35 PSI Full 28in. Hg 6" 100ft 1.13 lbs
WSTF400X100 4" 101.6mm 4.76" 121.0mm 65 PSI 32 PSI Full 28in. Hg 8" 100ft 1.74 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.

Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
