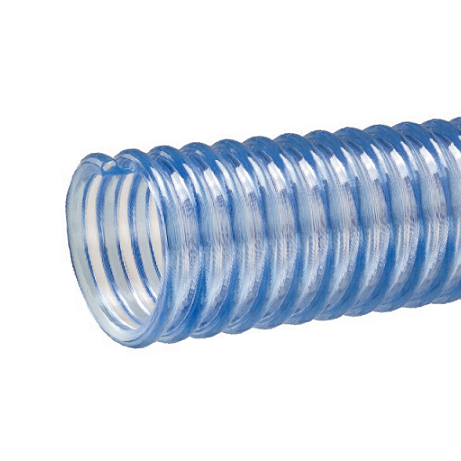

WT225X50 Kuriyama Tigerflex WT Series Food Grade PVC Material Handling Hose - 2-1/4" ID - 50ft

WT225X50 Tigerflex by Kuriyama | WT Series | Food Grade Material Handling Hose | 2-1/4" ID | PVC | 50ft Length

Save $33.68 Save $33.68
$341.48
$341.48 - $341.48
$341.48
$307.80
$307.80 - $307.80
$307.80

Kuriyama Tigerflex WT™ Series Food Grade PVC Material Handling Hose


Package Quantity: 50 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: WT225X50 Kuriyama | 50 |
Brand: Tigerflex
Series: WT Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 2.25in
Outer Diameter: 2.74in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements, RoHS Compliant
Special Properties: Outer Helix Protection

Kuriyama Tigerflex WT™ Series Food Grade PVC Material Handling Hose


SPECIFICATIONS

Application: Food grade liquids, Food Grade Material Handling, Material Handling, Pharmaceutical Product Transfer Plastic Processing Equipment, Pneumatic Conveying Equipment, Poultry Processing SAE Rating: N/A
Other Ratings: N/A Tube: PVC Tube
Reinforcement: Rigid PVC Helix Cover: N/A
Temperature Range: -4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications 3A(01), BSE/TSE(02) , FDA(03),RoHS(10), USDA(11)
Other Features:
  • Superior Product Design - Tigerflex™ WT™ Series hoses are an industry standard for pneumatic material handling due to our specially engineered compound, innovative design and uncompromising quality control. Provides the ideal combination of light weight, flexibility and durability.
  • Food Grade Materials - Hose complies with applicable FDA(03) and 3-A(01) requirements. Hose approved by USDA(11) for use in meat and poultry plants.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • Convoluted Outer Cover - Provides increased hose flexibility
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Min. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
WT100X100 1" 25.4mm 1.30" 33.0mm 55 PSI 30 PSI 28in. Hg 28in. Hg 2" 100ft 0.21 lbs
WT100X50 1" 25.4mm 1.30" 33.0mm 55 PSI 30 PSI 28in. Hg 28in. Hg 2" 50ft 0.21 lbs
WT125X100 1-1/4" 31.7mm 1.60" 40.6mm 50 PSI 25 PSI 28in. Hg 28in. Hg 2" 100ft 0.28 lbs
WT125X50 1-1/4" 31.7mm 1.60" 40.6mm 50 PSI 25 PSI 28in. Hg 28in. Hg 2" 50ft 0.28 lbs
WT150X100 1-1/2" 38.1mm 1.92" 48.8mm 50 PSI 25 PSI 28in. Hg 28in. Hg 3" 100ft 0.35 lbs
WT150X50 1-1/2" 38.1mm 1.92" 48.8mm 50 PSI 25 PSI 28in. Hg 28in. Hg 3" 50ft 0.35 lbs
WT200X100 2" 50.8mm 2.40" 61.0mm 40 PSI 20 PSI 28in. Hg 24in. Hg 4" 100ft 0.56 lbs
WT200X50 2" 50.8mm 2.40" 61.0mm 40 PSI 20 PSI 28in. Hg 24in. Hg 4" 50ft 0.56 lbs
WT225X100 2-1/4" 57.2mm 2.74" 69.6mm 40 PSI 20 PSI 28in. Hg 24in. Hg 4.5" 100ft 0.65 lbs
WT225X50 2-1/4" 57.2mm 2.74" 69.6mm 40 PSI 20 PSI 28in. Hg 24in. Hg 4.5" 50ft 0.65 lbs
WT250X100 2-1/2" 63.5mm 2.99" 75.9mm 40 PSI 20 PSI 28in. Hg 24in. Hg 5" 100ft 0.77 lbs
WT250X50 2-1/2" 63.5mm 2.99" 75.9mm 40 PSI 20 PSI 28in. Hg 24in. Hg 5" 50ft 0.77 lbs
WT300X100 3" 76.2mm 3.64" 92.5mm 40 PSI 20 PSI 28in. Hg 24in. Hg 6" 100ft 1.10 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.
