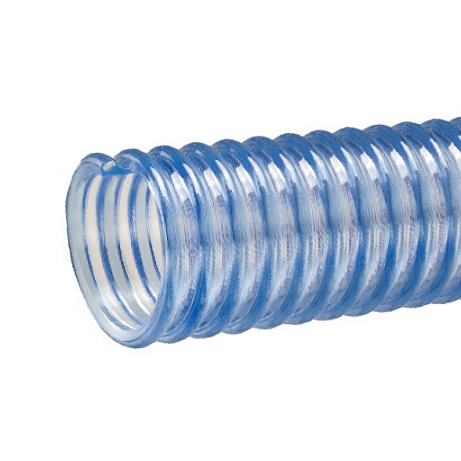

WT250X100 Kuriyama Tigerflex WT Series Food Grade PVC Material Handling Hose - 2-1/2" ID - 100ft

WT250X100 Tigerflex by Kuriyama | WT Series | Food Grade Material Handling Hose | 2-1/2" ID | PVC | 100ft Length

Save $272.16 Save $272.16
$952.56
$952.56 - $952.56
$952.56
$680.40
$680.40 - $680.40
$680.40

Kuriyama Tigerflex WT™ Series Food Grade PVC Material Handling Hose


Package Quantity: 100 FT

Specifications for Variant SKU: WT250X100 Kuriyama | 100 |
Brand: Tigerflex
Series: WT Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 2.50in
Outer Diameter: 2.99in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements, RoHS Compliant
Special Properties: Outer Helix Protection
Application: Food grade liquids, Food Grade Material Handling, Material Handling, Pharmaceutical Product Transfer Plastic Processing Equipment, Pneumatic Conveying Equipment, Poultry Processing SAE Rating: N/A
Reinforcement: Rigid PVC Helix Tube: PVC Tube
Temperature Range: -4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C) Specifications 3A(01), BSE/TSE(02) , FDA(03),RoHS(10), USDA(11)
Other Features:
  • Superior Product Design - Tigerflex™ WT™ Series hoses are an industry standard for pneumatic material handling due to our specially engineered compound, innovative design and uncompromising quality control. Provides the ideal combination of light weight, flexibility and durability.
  • Food Grade Materials - Hose complies with applicable FDA(03) and 3-A(01) requirements. Hose approved by USDA(11) for use in meat and poultry plants.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • Convoluted Outer Cover - Provides increased hose flexibility
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Min. Bending Radius Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F)
WT100X100 1" 25.4mm 1.30" 33.0mm 55 PSI 30 PSI 28in. Hg 28in. Hg 2" 0.21 lbs
WT100X50 1" 25.4mm 1.30" 33.0mm 55 PSI 30 PSI 28in. Hg 28in. Hg 2" 0.21 lbs
WT125X100 1-1/4" 31.7mm 1.60" 40.6mm 50 PSI 25 PSI 28in. Hg 28in. Hg 2" 0.28 lbs
WT125X50 1-1/4" 31.7mm 1.60" 40.6mm 50 PSI 25 PSI 28in. Hg 28in. Hg 2" 0.28 lbs
WT150X100 1-1/2" 38.1mm 1.92" 48.8mm 50 PSI 25 PSI 28in. Hg 28in. Hg 3" 0.35 lbs
WT150X50 1-1/2" 38.1mm 1.92" 48.8mm 50 PSI 25 PSI 28in. Hg 28in. Hg 3" 0.35 lbs
WT200X100 2" 50.8mm 2.40" 61.0mm 40 PSI 20 PSI 28in. Hg 24in. Hg 4" 0.56 lbs
WT200X50 2" 50.8mm 2.40" 61.0mm 40 PSI 20 PSI 28in. Hg 24in. Hg 4" 0.56 lbs
WT225X100 2-1/4" 57.2mm 2.74" 69.6mm 40 PSI 20 PSI 28in. Hg 24in. Hg 4.5" 0.65 lbs
WT225X50 2-1/4" 57.2mm 2.74" 69.6mm 40 PSI 20 PSI 28in. Hg 24in. Hg 4.5" 0.65 lbs
WT250X100 2-1/2" 63.5mm 2.99" 75.9mm 40 PSI 20 PSI 28in. Hg 24in. Hg 5" 0.77 lbs
WT250X50 2-1/2" 63.5mm 2.99" 75.9mm 40 PSI 20 PSI 28in. Hg 24in. Hg 5" 0.77 lbs
WT300X100 3" 76.2mm 3.64" 92.5mm 40 PSI 20 PSI 28in. Hg 24in. Hg 6" 1.10 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.
