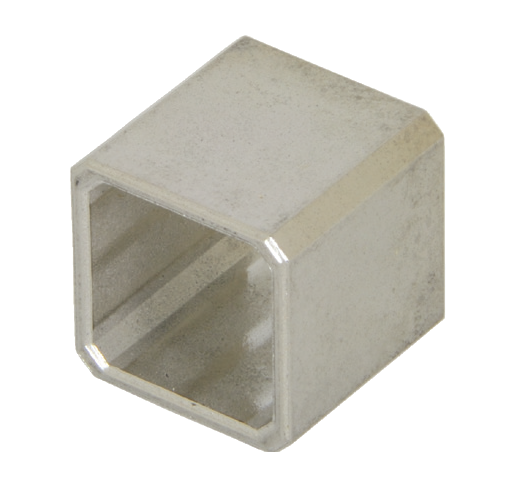

XB51-SVE Dixon Valve Actuator Sleeve Insert - Square Design - 22-27mm Sleeve - 304 Stainless Steel

Name: XB51-SVE Dixon Valve Actuator Sleeve Insert - Square Design - 22-27mm Sleeve - 304 Stainless Steel
Brand: Dixon
SKU: XB51-SVE Dixon
Price: 103.68 USD
Availability: InStock

$79.86 - $79.86

$79.86

$103.68

$103.68 - $103.68

$103.68

Dixon Sanitary Fittings
Actuator Sleeve Insert - Square Design - 304 Stainless Steel

Fits all pneumatic actuators.

Reduces actuator ISO 5211 output drive for direct assembly with smaller square valve stems and couplers.

Quantity

Specifications for Variant SKU: XB51-SVE Dixon

Features:
Double square sleeve - high strength iron-based powdered metal. Multiple size reductions possible with one sleeve.


Part Number	A	B	C
XB51-SVA	11mm	14mm	16mm
XB51-SVB	14mm	17mm	17mm
XB51-SVC	17mm	22mm	22mm
XB51-SVD	9mm	11mm	11mm
XB51-SVE	22mm	27mm	27mm
