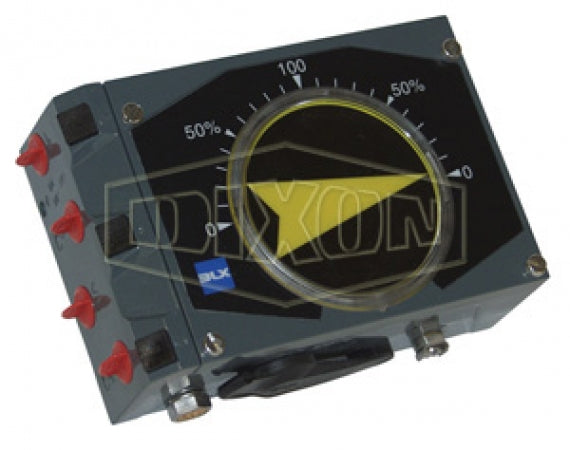

XPO-E4F by Dixon Valve | Actuated Valve Positioner | Electro-Pneumatic

Name: XPO-E4F by Dixon Valve | Actuated Valve Positioner | Electro-Pneumatic
Brand: Dixon
SKU: XPO-E4F Dixon
Price: 2325.93 USD
Availability: InStock

Save $63.98

$2,389.91

$2,389.91 - $2,389.91

$2,389.91

$2,325.93

$2,325.93 - $2,325.93

$2,325.93

Dixon Valve & Coupling
Actuated Valve Positioner

Quantity

Specifications for Variant SKU: XPO-E4F Dixon

Specifications:
Air capacity: at 29 PSI (200kPa): 9.5 SCFM at 87 PSI (600kPa): 28.3 SCFM at 145 PSI (1MPa): 47.1 SCFM Air connections: 1/4" NPT Gauges: 1/8" NPT Cable entry: 1/2" NPT

Part Number	Positioner Type	Details
XPO-E4F	Electro-Pneumatic	Input range: 4-20mA (Ri<250ohms) Supply pressure: 21.8 to 145 PSI (0.15 to 1MPa) Linearity error: <1.0% f.s Hysteresis: <0.6% f.s Repeatability: <0.5% f.s
XPO-P4F	Pneumatic	Input range: 3 to 15 PSI (20-100kPa) Supply pressure: < 145 PSI (<1MPa) Linearity error: <0.7% f.s Hysteresis: <0.4% f.s Repeatability: <0.3% f.s

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
