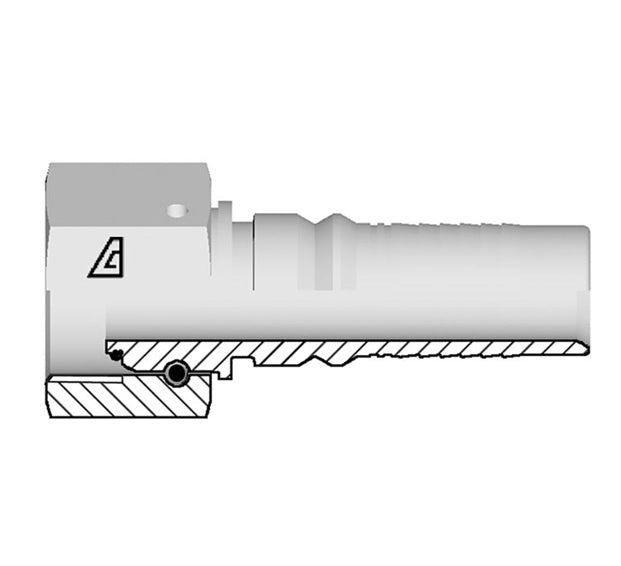

Y-2020-FBPO Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | -20 Female BSP / JIS Swivel 60° Cone Interlock x -20 Hose ID | Steel

Name: Y-2020-FBPO Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | -20 Female BSP / JIS Swivel 60° Cone Interlock x -20 Hose ID | Steel
Brand: Kuriyama
SKU: Y-2020-FBPO Kuriyama
Price: 23.71 USD
Availability: InStock

Save $2.96

$26.67

$26.67 - $26.67

$26.67

$23.71

$23.71 - $23.71

$23.71

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | Female BSP / JIS Swivel 60° Cone Interlock x Hose Barb

Quantity

Specifications for Variant SKU: Y-2020-FBPO Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	Straight
Material(s):	Steel
Compatible with the following Series:	E5K Series \| E6K Series \| E5KST Series \| E6KST Series \| E4K Series \| E5.5K Series


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	Hex Dia. CH1	Weight
Part Number	Dash Size	in	mm	Dash Size	Size (in) - TPI	mm	mm	lbs/each
Y-0808-FBPO	-08	1/2"	12.7mm	-08	1/2-14	22.5mm	27mm	0.32 lbs
Y-1212-FBPO	-12	3/4"	19.0mm	-12	3/4-14	22.5mm	32mm	0.40 lbs
Y-1616-FBPO	-16	1"	25.4mm	-16	1-11	25.5mm	38mm	0.64 lbs
Y-2020-FBPO	-20	1-1/4"	31.8mm	-20	1 1/4-11	30.2mm	50mm	1.18 lbs
Y-2424-FBPO	-24	1-1/2"	38.1mm	-24	1 1/2-11	33.5mm	55mm	1.64 lbs
Y-3232-FBPO	-32	2"	50.8mm	-32	2-11	33.0mm	70mm	2.71 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
