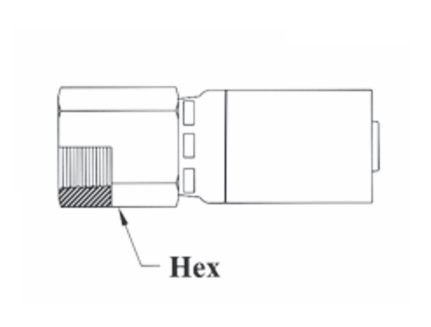

CS02-8X8 Couplamatic VARI-CRIMP Coupling - NPTF - Female Solid - 1/2" Hose ID - 1/2-14 Thread (Old Part Number: 812V)

CS02-8X8 by Couplamatic | VARI-CRIMP Coupling | 1/2" Hose ID x 1/2-14 Thread Female Solid NPTF | Straight | Trivalent Zinc Plating | Replaces: 812V

Save $0.65 Save $0.65
$5.84
$5.84 - $5.84
$5.84
$5.19
$5.19 - $5.19
$5.19

Couplamatic Systems Inc.
Vari-Crimp Couplings - NPTF - Female Solid
Specifications for Variant SKU: CS02-8X8 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Female NPTF, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
Part Number Hose ID Pipe Size Thread Size Nut Hex Previous Part Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS02-4X2 1/4" 1/8" 1/8-27 5/8" 436V HY04-02FF 102HY-2-4 04U-202
CS02-4X4 1/4" 1/4" 1/4-18 3/4" 412V HY04-04FF 102HY-4-4 04U-204
CS02-6X4 3/8" 1/4" 1/4-18 3/4" 663V HY06-04FF 102HY-4-6 06U-204
CS02-6X6 3/8" 3/8" 3/8-18 7/8" 612V HY06-06FF 102HY-6-6 06U-206
CS02-6X8 3/8" 1/2" 1/2-14 1" 688V HY06-08FF 102HY-8-6 -
CS02-8X8 1/2" 1/2" 1/2-14 1" 812V HY08-08FF 102HY-8-8 08U-208
CS02-12X12 3/4" 3/4" 3/4-14 1-1/4" 1212V HY12-12FF 102HY-12-12 12U-212

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
