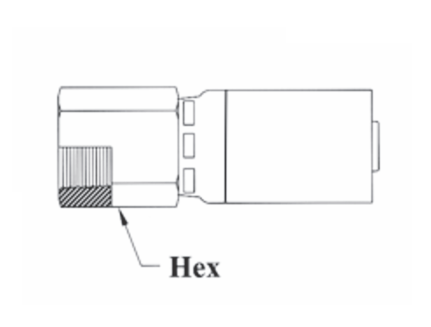

CS02-4X2 Couplamatic VARI-CRIMP Coupling - NPTF - Female Solid - 1/4" Hose ID - 1/8-27 Thread (Old Part Number: 436V)

CS02-4X2 by Couplamatic | VARI-CRIMP Coupling | 1/4" Hose ID x 1/8-27 Thread Female Solid NPTF | Straight | Trivalent Zinc Plating | Replaces: 436V

Save $2.39

$5.97

$5.97 - $5.97

$5.97

$3.58

$3.58 - $3.58

$3.58

Couplamatic Systems Inc.
Vari-Crimp Couplings - NPTF - Female Solid

Specifications for Variant SKU: CS02-4X2 Couplamatic
Series:	VARI-CRIMP Series
Shape (Orientation):	Straight
Ends Configuration:	1/8in Female NPTF, 1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

Part Number	Hose ID	Pipe Size	Thread Size	Nut Hex	Previous Part Number	Cross Reference Part Numbers
Part Number	Hose ID	Pipe Size	Thread Size	Nut Hex	Previous Part Number	Dayco HY	Parker HY	Weatherhead U
CS02-4X2	1/4"	1/8"	1/8-27	5/8"	436V	HY04-02FF	102HY-2-4	04U-202
CS02-4X4	1/4"	1/4"	1/4-18	3/4"	412V	HY04-04FF	102HY-4-4	04U-204
CS02-6X4	3/8"	1/4"	1/4-18	3/4"	663V	HY06-04FF	102HY-4-6	06U-204
CS02-6X6	3/8"	3/8"	3/8-18	7/8"	612V	HY06-06FF	102HY-6-6	06U-206
CS02-6X8	3/8"	1/2"	1/2-14	1"	688V	HY06-08FF	102HY-8-6	-
CS02-8X8	1/2"	1/2"	1/2-14	1"	812V	HY08-08FF	102HY-8-8	08U-208
CS02-12X12	3/4"	3/4"	3/4-14	1-1/4"	1212V	HY12-12FF	102HY-12-12	12U-212

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
