American Thread Identification Kit | Includes: Thread Pitch Gauge, Fitting Identification Cards, Vinyl Bag for identifying NPT, JIC, ORFS, O-Ring Boss, NPSM, and SAE 45

American Thread Identification Kit | Includes: Thread Pitch Gauge, Fitting Identification Cards, Vinyl Bag for identifying NPT, JIC, ORFS, O-Ring Boss, NPSM, and SAE 45

Save $6.00 Save $6.00
$35.95
$35.95 - $35.95
$35.95
$29.95
$29.95 - $29.95
$29.95

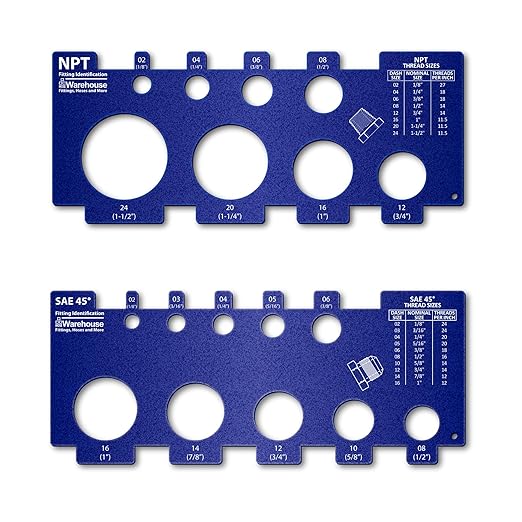

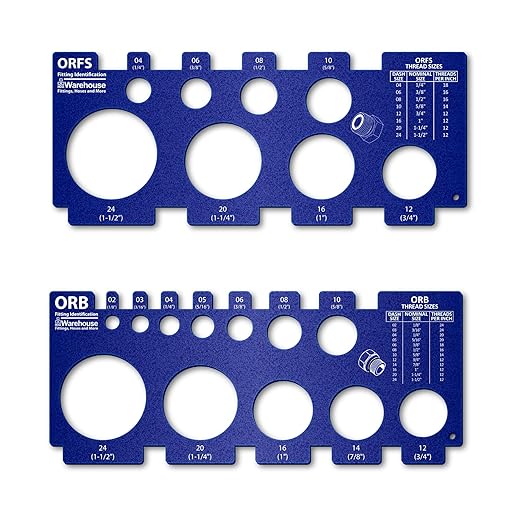

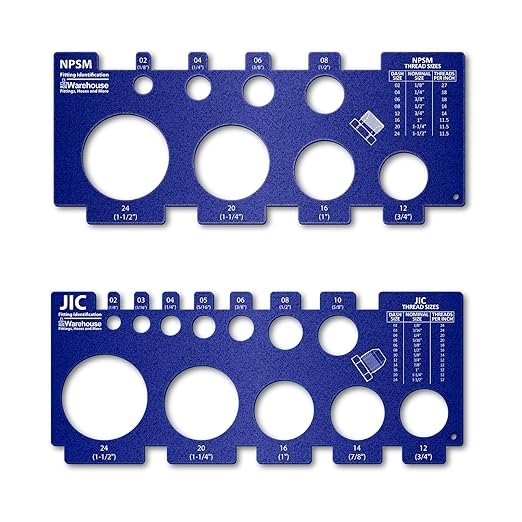

  • Versatile Measurement Range: Includes six plastic cards for accurately measuring O.D. and I.D. of NPT, NPSM, ORFS, JIC, ORB, and SAE 45° fittings, catering to a wide range of hydraulic systems.

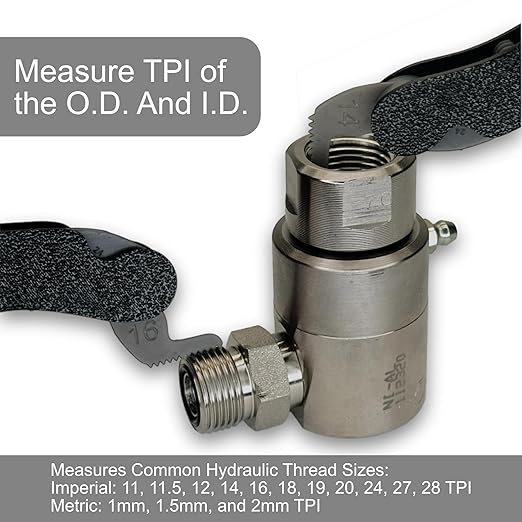

  • Comprehensive Thread Pitch Tool: Comes with a specialized tool to measure TPI for Imperial sizes from 11 to 28 and metric threads of 1mm, 1.5mm, and 2mm, ensuring compatibility with most fittings.

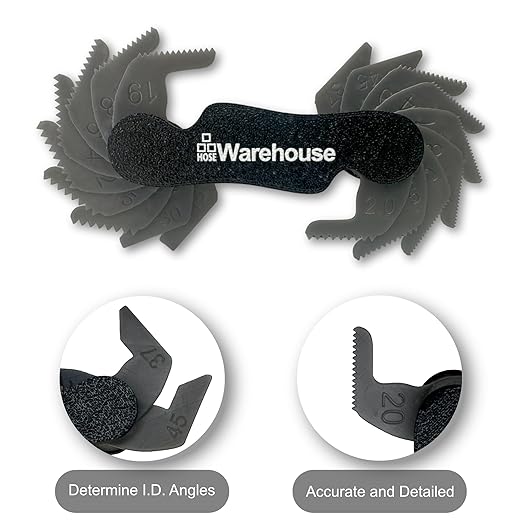

  • Angle Measurement Capabilities: The kit features four pieces to accurately measure fitting tapers at 37°, 45°, 12°, and 60°, providing additional versatility in assessing hydraulic connections.
  • Enhanced Durability: Each gauge and tool is constructed with high-quality materials designed to withstand the rigors of industrial use, ensuring long-term reliability.
  • Easy-to-Read Labels and Charts: Each card includes a detailed chart with dash size, nominal size, and threads per inch for quick reference, simplifying the measurement process.
  • Superior Design: Unique design allows for easy measurement of both inside and outside threads, offering a clear advantage over competing products.

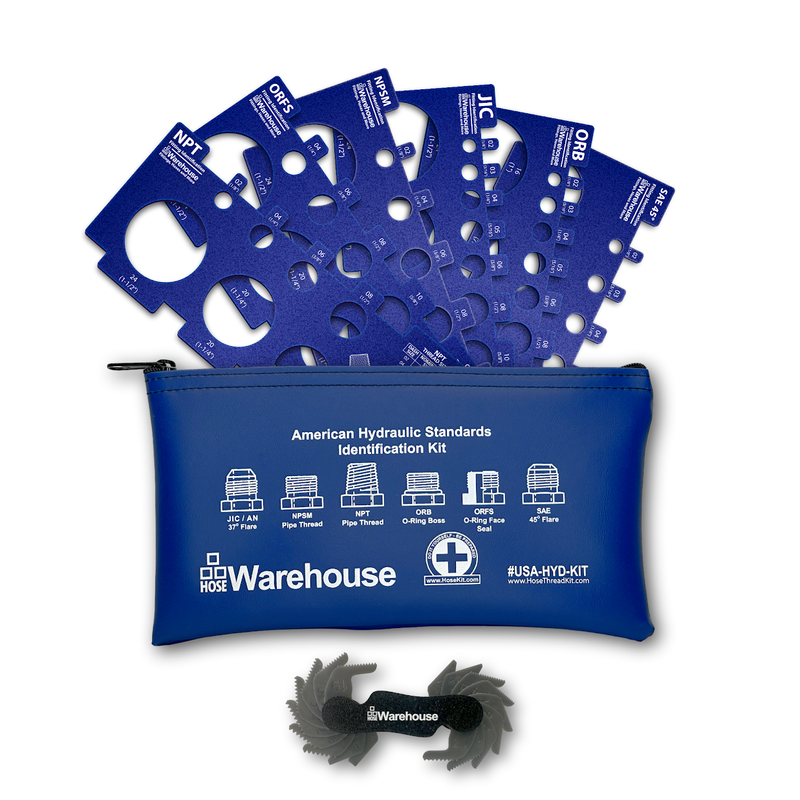

  • Portable and Organized Storage: All components are neatly stored in a sturdy blue vinyl bag, making the kit convenient to carry on-site or keep organized in the shop.
picture of american thread identification kit

Introducing the USA Standard Hydraulic Thread Gauge Kit

This kit is an indispensable tool designed for professionals who demand precision and reliability in measuring US standard hydraulic fittings. This comprehensive kit includes six durable plastic cards, each tailored to specific fitting types such as NPT, NPSM, ORFS, JIC, ORB, and SAE 45°. With features that allow for accurate measurement of both outer and inner diameters, along with a versatile tool for determining threads per inch (TPI) and fitting angles, this kit simplifies and enhances your measurement process. Encased in a sturdy blue vinyl bag, it's the ultimate portable solution for both on-site and in-shop applications.

How to Use

card pointing to image of fitting with the word "shape"

fitting being inserted into card to check size with word "size"

showing thread pitch gauge in use with word "thread"

Identify the Shape

Select the card that matches the shape of the fitting or adapter you need to identify. For fittings with angled surfaces, use the angle guides on the angle and thread gauge tool to determine the correct angle.

Measure the Size

After choosing the card that resembles the part, find the closest diameter by inserting your fitting or port into each hole until you find the perfect match.

Determine the Thread

Once you've identified the correct outside diameter, if the part is threaded, use the angle and thread gauge tool to accurately measure the thread size.

Features

info graph of thread gauge

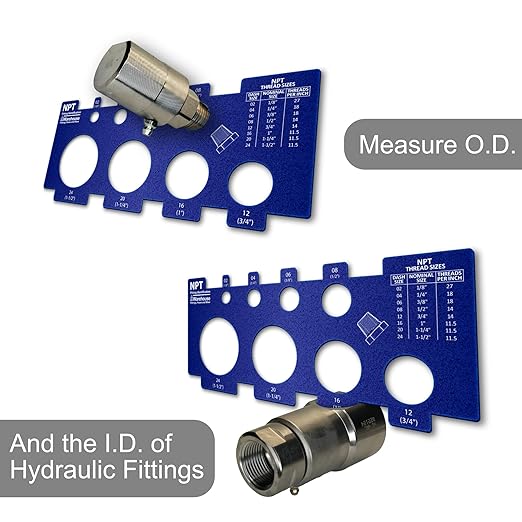

Ability to Measure Inner and Outer Dimensions

adapter being inserted to check OD

thread gauge having inner dimensions measured

picture of thread pitch gauge in use

Outer Dimensions

Inner Dimensions

Both OD and ID Threads



USA-HYD-KIT being pulled out of a vinyl bag


Portable and Organized Storage

Every component of the kit is securely stored in a durable blue vinyl bag, ensuring that all tools are kept together and well-organized. This design makes it easy to transport the kit to various job sites, while also keeping your workspace tidy and your tools readily accessible when needed. Whether you're on the go or working in the shop, the convenient storage bag ensures that everything is in its place and ready for use.
