CS05-4X4 Couplamatic VARI-CRIMP Coupling - NPSM - Female Swivel - 1/4" Hose ID - 1/4-18 Thread (Old Part Number: 409V)

CS05-4X4 by Couplamatic | VARI-CRIMP Coupling | 1/4" Hose ID x 1/4-18 Thread Female Swivel NPSM | Straight | Trivalent Zinc Plating | Replaces: 409V

Save $0.49

$4.43

$4.43 - $4.43

$4.43

$3.94

$3.94 - $3.94

$3.94

Couplamatic Systems Inc.
Vari-Crimp Couplings - NPSM - Female Swivel

Quantity

Specifications for Variant SKU: CS05-4X4 Couplamatic
Series:	VARI-CRIMP Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female NPSM, 1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

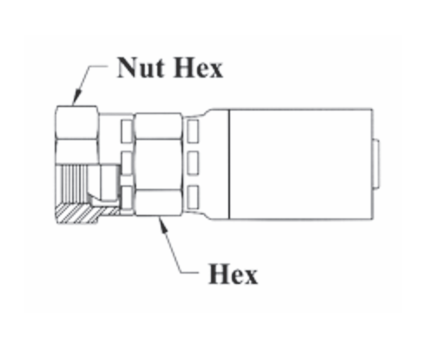

Part Number	Hose ID	Pipe Size	Thread Size	Hex Size	Nut Hex	Previous Part Number	Cross Reference Part Numbers
Part Number	Hose ID	Pipe Size	Thread Size	Hex Size	Nut Hex	Previous Part Number	Dayco HY	Parker HY	Weatherhead U
CS05-4X4	1/4"	1/4"	1/4-18	9/16"	11/16"	409V	HY04-04FN	107HY-4-4	04U-054
CS05-6X6	3/8"	3/8"	3/8-18	11/16"	7/8"	606V	HY06-06FN	107HY-6-6	06U-056
CS05-6X8	3/8"	1/2"	1/2-14	3/4"	1"	648V	-	-	06U-058
CS05-8X8	1/2"	1/2"	1/2-14	7/8"	1"	806V	HY08-08FN	107HY-8-8	08U-058
CS05-12X12	3/4"	3/4"	3/4-14	1-1/8"	1-1/4"	1206V	HY12-12FN	107HY-12-12	12U-062
CS05-16X16	1"	1"	1-11-1/2	1-3/8"	1-1/2"	1606V	HY16-16FN	107HY-16-16	16U-066
CS05-20X20	1-1/4"	1-1/4"	1-1/4-11-1/2	1-11/16"	1-7/8"	2008V	HY20-20FN	-	20U-070

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
