CS05-6X8 by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x 1/2-14 Thread Female Swivel NPSM | Straight | Trivalent Zinc Plating | Replaces: 648V

Save $0.80 Save $0.80
Original price $7.18
Original price $7.18 - Original price $7.18
Original price $7.18
Current price $6.38
$6.38 - $6.38
Current price $6.38

Couplamatic Systems Inc.
Vari-Crimp Couplings - NPSM - Female Swivel

Specifications for Variant SKU: CS05-6X8 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Female NPSM, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

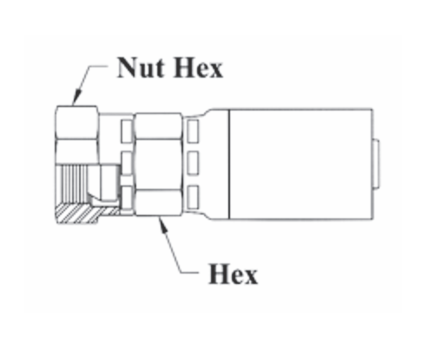

Part Number Hose ID Pipe Size Thread Size Hex Size Nut Hex Previous Part Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS05-4X4 1/4" 1/4" 1/4-18 9/16" 11/16" 409V HY04-04FN 107HY-4-4 04U-054
CS05-6X6 3/8" 3/8" 3/8-18 11/16" 7/8" 606V HY06-06FN 107HY-6-6 06U-056
CS05-6X8 3/8" 1/2" 1/2-14 3/4" 1" 648V - - 06U-058
CS05-8X8 1/2" 1/2" 1/2-14 7/8" 1" 806V HY08-08FN 107HY-8-8 08U-058
CS05-12X12 3/4" 3/4" 3/4-14 1-1/8" 1-1/4" 1206V HY12-12FN 107HY-12-12 12U-062
CS05-16X16 1" 1" 1-11-1/2 1-3/8" 1-1/2" 1606V HY16-16FN 107HY-16-16 16U-066
CS05-20X20 1-1/4" 1-1/4" 1-1/4-11-1/2 1-11/16" 1-7/8" 2008V HY20-20FN - 20U-070

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
