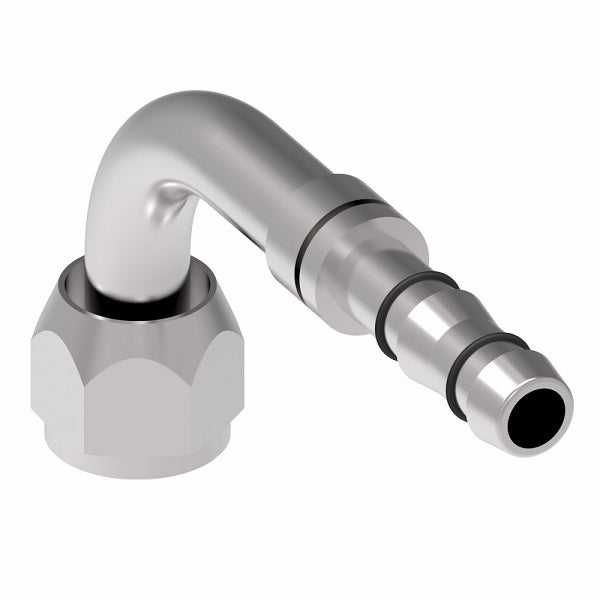

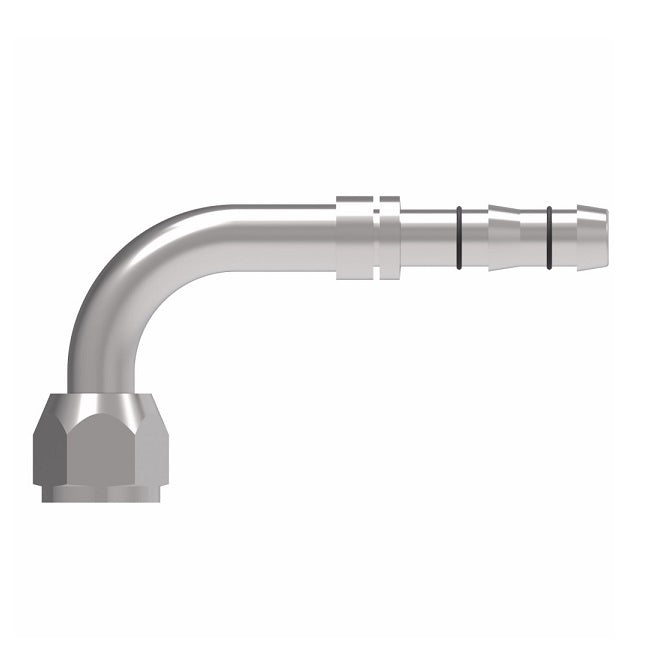

FJ5985-1210S E-Z Clip System by Danfoss | Female O-Ring 90° Elbow (Short Pilot) | A/C Refrigeration Fitting | -12 Female O-Ring Short Pilot x -10 Hose Barb | Steel
FJ5985-1210S E-Z Clip System by Danfoss | Female O-Ring 90° Elbow (Short Pilot) | A/C Refrigeration Fitting | -12 Female O-Ring Short Pilot x -10 Hose Barb | Steel
FJ5985-1210S E-Z Clip System by Danfoss | Female O-Ring 90° Elbow (Short Pilot) | A/C Refrigeration Fitting | -12 Female O-Ring Short Pilot x -10 Hose Barb | Steel
FJ5985-1210S E-Z Clip System by Danfoss | Female O-Ring 90° Elbow (Short Pilot) | A/C Refrigeration Fitting | -12 Female O-Ring Short Pilot x -10 Hose Barb | Steel

FJ5985-1210S E-Z Clip System by Danfoss | Female O-Ring 90° Elbow (Short Pilot) | A/C Refrigeration Fitting | -12 Female O-Ring Short Pilot x -10 Hose Barb | Steel

$91.25 - $91.25
$91.25
$91.25 - $91.25
$91.25

Danfoss A/C & Refrigeration
E-Z Clip System - Female O-Ring (Short Pilot) - 90° Elbow

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ5985-1210S Danfoss
Brand: E-Z Clip
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Female O-Ring Short Pilot, 5/8in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ5985-0606S 5/8-18 -06 3.32" 1.79" 1.38" 0.75" FF14171 22546-11 FF90178-11
FJ5985-0608S 5/8-18 -08 3.33" 1.79" 1.38" 0.75" FF14172 22546-11 FF90178-11
FJ5985-0806S 3/4-16 -06 3.86" 2.33" 1.62" 0.88" FF14171 22546-13 FF90178-13
FJ5985-0808S 3/4-16 -08 3.77" 2.23" 1.62" 0.88" FF14172 22546-13 FF90178-13
FJ5985-0810S 3/4-16 -10 3.78" 2.23" 1.62" 0.88" FF14173 22546-13 FF90178-13
FJ5985-0812S - -12 - - - - FF14174 22546-13 FF90178-13
FJ5985-1010S 7/8-14 -10 4.22" 2.67" 1.89" 1.06" FF14173 22546-15 FF90178-15
FJ5985-1012S 7/8-14 -12 4.24" 2.67" 1.89" 1.06" FF14174 22546-15 FF90178-15
FJ5985-1210S 1-1/16-14 -10 4.76" 3.31" 2.56" 1.25" FF14173 22546-17 FF90178-17
FJ5985-1212S 1-1/16-14 -12 4.74" 3.16" 2.56" 1.25" FF14174 22546-17 FF90178-17
FJ5985-1216S 1-1/16-14 -16 4.84" 3.16" 2.56" 1.25" FF14401 22546-17 FF90178-17
