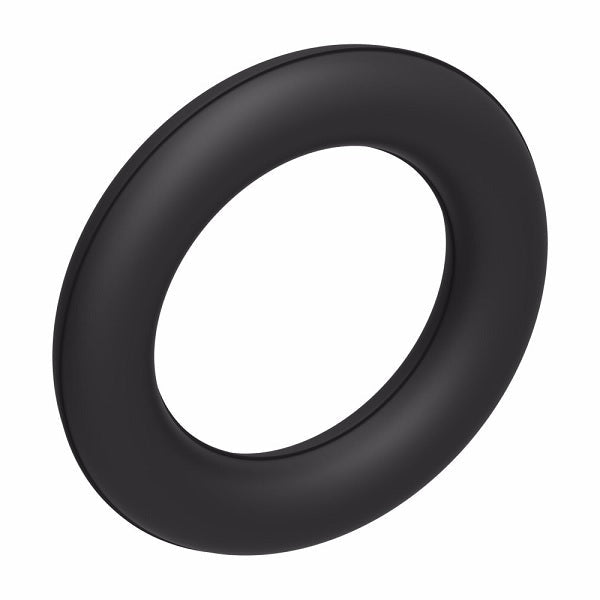

22546-15 Aeroquip by Danfoss | O-Ring for Bump Tube O-Ring Seal and O-Ring Pilot Fitting | -10 O-Ring Pilot Dash Size | Neoprene

22546-15 Aeroquip by Danfoss | O-Ring for Bump Tube O-Ring Seal and O-Ring Pilot Fitting | -10 O-Ring Pilot Dash Size | Neoprene

$0.36 - $0.36
$0.36
$0.36 - $0.36
$0.36

Aeroquip® by Danfoss
O-Ring for Bump Tube O-Ring Seal and O-Ring Pilot Fitting - Neoprene

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 22546-15 Danfoss
Shape (Orientation): No Orientation
Seal Material(s): Chloroprene
Technical Info:
Material: Chloroprene (Neoprene)
Durometer: 70
Temperature: -65°F to +300°F
Color: Black		 Material: HNBR
Durometer: 70
Temperature: -25°F to +300°F
Color: Green
Part Number O-Ring Pilot Dash Size A E Part Number O-Ring Pilot Dash Size A E
22546-11 -06 0.301" 0.07" FF90178-11 -06 0.301" 0.0625"
22546-13 -08 0.426" 0.07" FF90178-13 -08 0.426" 0.0625"
22546-15 -10 0.551" 0.07" FF90178-15 -10 0.551" 0.0625"
22546-17 -12 0.676" 0.07" FF90178-17 -12 0.676" 0.0625"
