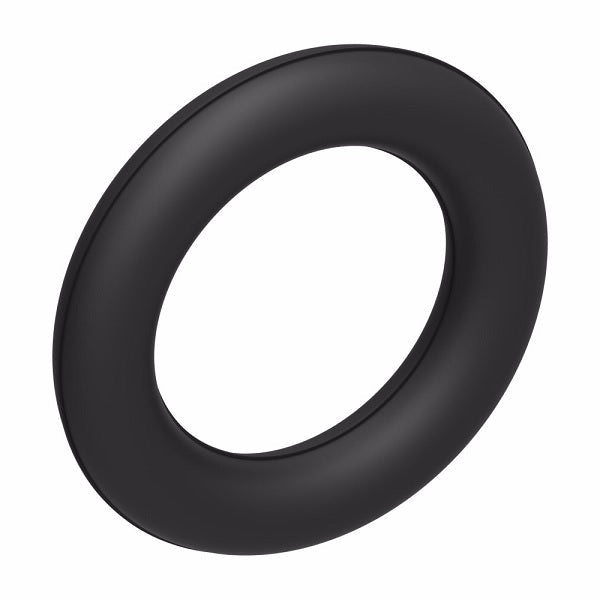

22546-17 Aeroquip by Danfoss | O-Ring for Bump Tube O-Ring Seal and O-Ring Pilot Fitting | -12 O-Ring Pilot Dash Size | Neoprene

22546-17 Aeroquip by Danfoss | O-Ring for Bump Tube O-Ring Seal and O-Ring Pilot Fitting | -12 O-Ring Pilot Dash Size | Neoprene

$0.97 - $0.97
$0.97
$0.97 - $0.97
$0.97

Aeroquip® by Danfoss
O-Ring for Bump Tube O-Ring Seal and O-Ring Pilot Fitting - Neoprene

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 22546-17 Danfoss
Shape (Orientation): No Orientation
Seal Material(s): Neoprene
Technical Info:
Material: Chloroprene (Neoprene)
Durometer: 70
Temperature: -65°F to +300°F
Color: Black		 Material: HNBR
Durometer: 70
Temperature: -25°F to +300°F
Color: Green
Part Number O-Ring Pilot Dash Size A E Part Number O-Ring Pilot Dash Size A E
22546-11 -06 0.301" 0.07" FF90178-11 -06 0.301" 0.0625"
22546-13 -08 0.426" 0.07" FF90178-13 -08 0.426" 0.0625"
22546-15 -10 0.551" 0.07" FF90178-15 -10 0.551" 0.0625"
22546-17 -12 0.676" 0.07" FF90178-17 -12 0.676" 0.0625"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
