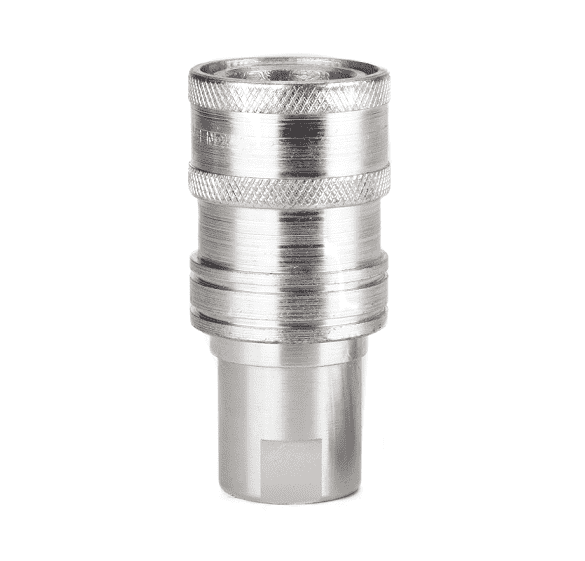

FD72-1001-08-10 Hansen® by Danfoss | Quick Disconnect Coupling | FD72/FD76 Series | 1/2" Female NPT x 5/8" Farm/AG ISO 5675 Interchange | Socket | Buna-N Seal | Steel

FD72-1001-08-10 Hansen® by Danfoss | Quick Disconnect Coupling | FD72/FD76 Series | 1/2" Female NPT x 5/8" Farm/AG ISO 5675 Interchange | Socket | Buna-N Seal | Steel

$111.74 - $111.74

$111.74

$111.74 - $111.74

$111.74

Hansen® by Danfoss
FD72/FD76 Series | Connect Under Pressure - Farm ISO 5675 Interchange

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen FD72 Series couplings incorporate special valving allowing connection to a FD76 Series male half under pressure.

Specifications for Variant SKU: FD72-1001-08-10 Danfoss
Brand:	Hansen
Series:	FD72/FD76 Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female NPT, 5/8in ISO-5675 Farm (Agricultural) QD Interchange
Material(s):	Carbon Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Product Features:	Push-to-connect for one hand operation when sleeve is mounted. Retaining ring groove on socket/female half for bulkhead and breakaway frame mounting. Contains an over travel, selfsealing poppet valve construction for connecting to a pressurized male tip. Applications require that the tractor control valve be actuated to open the flow path and to equalize the pressure.
Applications & Markets:	Hydraulic fluid transfer. Agricultural equipment.
Specifications:	Interchanges with ISO 5675 plug/male tips.
Materials:	Standard seal material: Buna-N. Standard body material: High resistance carbon steel with zinc trivalent plating.

Body Size	Max. Operating Pressure		Min. Burst Pressure Connected		Vacuum Connected Only	Rated Flow		Air Inclusion	Fluid Loss
5/8"	207 bar	3,000 psi	827 bar	12,000 psi	28 in./Hg	61 lpm	16 gpm	2.8 cc. max.	2.8 cc. max.


Plug/Male (Figure 1)				Socket/Female (Figure 2)				Plug/Male (Figure 3)
Buna-N Part Number	Type	Body Size	Port Size	Thread	Thread Type	Figure	Dimensions
							A	B	C	D	E	Hex 1
							in (mm)	in (mm)	in (mm)	in (mm)	in (mm)	in (mm)
Dimensions (Female, Valved)
FD76-1002-08-10	Plug/Male	5/8"	1/2"	1/2-14	Female Pipe	1	2.05" (52.1mm)	-	-	-	-	1.06" (26.9mm)
FD72-1001-08-10	Socket/Female	5/8"	1/2"	1/2-14	Female Pipe	2	3.17" (80.5mm)	1.52" (38.6mm)	1.50" (38.1mm)	1.41" (35.8mm)	0.20" (5.1mm)	1.00" (25.4mm)
FD76-1010-08-10	Plug/Male	5/8"	1/2"	3/4-16	Female SAE O-Ring	3	2.05" (52.1mm)	-	-	-	-	1.06" (27.0mm)


Part Number	Description	Body Size
5657-10	Dust Cap	5/8"
5659-10	Dust Plug	5/8"
5603	Break Away Frame	5/8"
