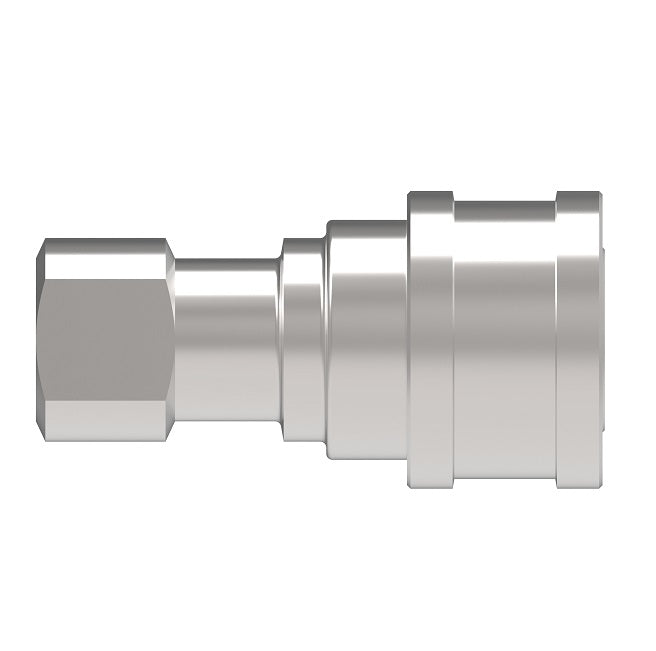

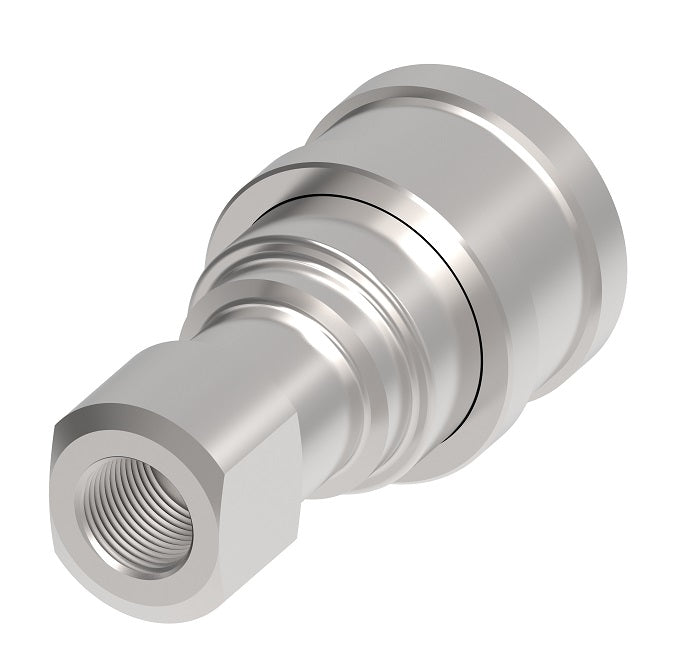

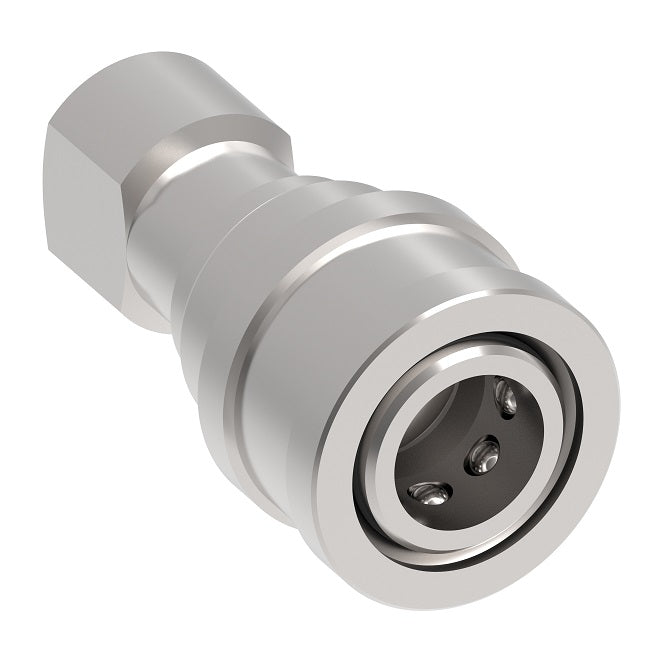

G5622-16-16 Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 1" Female BSP x 1" ISO 7241-1 Type A | Socket | Valved | Buna-N Seal | Carbon Steel
G5622-16-16 Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 1" Female BSP x 1" ISO 7241-1 Type A | Socket | Valved | Buna-N Seal | Carbon Steel
G5622-16-16 Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 1" Female BSP x 1" ISO 7241-1 Type A | Socket | Valved | Buna-N Seal | Carbon Steel
G5622-16-16 Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 1" Female BSP x 1" ISO 7241-1 Type A | Socket | Valved | Buna-N Seal | Carbon Steel

G5622-16-16 Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 1" Female BSP x 1" ISO 7241-1 Type A | Socket | Valved | Buna-N Seal | Carbon Steel

$103.75 - $103.75
$103.75
$103.75 - $103.75
$103.75

Hansen® by Danfoss
5600 Series | ISO 7241-1 A Interchange

Female BSP (Valved)

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen 5600 Series features a rugged ball latch mechanism with self-sealing poppet valves.

Note: Incorporates a pusher device to open mating valved coupling halves.
Specifications for Variant SKU: G5622-16-16 Danfoss
Brand: Hansen
Series: 5600 Series
Shape (Orientation): Straight
Ends Configuration: 1in Female BSP, 1in ISO-A QD Interchange
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Product Features:
  • Self-sealing poppet valve provides excellent high and low pressure sealing.
  • Streamlined valving provides minimum pressure drop.
Applications & Markets:
  • Hydraulic fluid transfer
  • Agricultural equipment
  • Construction equipment
  • Dump, snow plow and maintenance vehicles
  • In-plant manufacturing
ISO Standard:
  • Meets dimensional requirements to ISO standard 7241-1 Series A
Materials:
  • Standard body material: High resistance carbon steel with zinc trivalent plating (Brass poppet guide in -04 size)
  • Standard seal materials: Buna-N, EPDM and FKM
Body Size Max. Operating Pressure Minimum Burst Pressure Connected Vacuum Connected Only Rated Flow Air Inclusion Fluid Loss
in bar psi bar psi in/hg lpm gpm cc.max. cc.max.
1/4 350 5000 1050 15000 28 4 1 0.50 0.50
3/8 280 4000 840 12000 28 23 6 1.5 1.3
5/8 280 4000 840 12000 28 45 12 2.8 2.8
3/4 280 4000 840 12000 28 106 28 10.0 8.2
1 280 4000 840 12000 28 189 50 14.2 14.2
Plug/Male (Figure 1)
Socket/Female (Figure 2)
Dimensions (Female BSP, Valved)
Part Number Coupling
Type		 Body
Size		 Thread Figure Dimensions
Buna-N A B Hex 1
mm in mm in mm in
G5622-4-4 Socket/Female 1/4" G 1/4" 2 1.89" 48mm 1.04" 26.3mm 0.87" 22.0mm
G5623-4-4 Plug/Male 1/4" G 1/4" 1 1.34" 34mm - - 0.75" 19.0mm
G5622-6-6 Socket/Female 3/8" G 3/8" 2 2.20" 56mm 1.18" 30mm 1.03" 27.0mm
G5623-6-6 Plug/Male 3/8" G 3/8" 1 1.50" 38mm - - 0.91" 23.0mm
G5622-8-10 Socket/Female 5/8" G 1/2" 2 2.60" 66mm 1.51" 38.3mm 1.06" 27.0mm
G5623-8-10 Plug/Male 5/8" G 1/2" 1 1.73" 44mm - - 1.06" 27.0mm
G5622-12-12 Socket/Female 3/4" G 3/4" 2 3.25" 82.5mm 1.89" 48mm 1.57" 40.0mm
G5622-16-16 Socket/Female 1" G 1" 2 3.86" 98mm 2.09" 53mm 1.97" 50.0mm
