00336506400 Thermoid 300 PSI Maxecon/GP General Purpose Air and Water Hose 3/8" ID

00336506400 by Thermoid | Maxecon/GP General Purpose Air and Water Hose | 3/8" ID | 300 PSI

$2.08 - $1,451.86
$2.08
$2.01
$2.01 - $1,409.33
$2.01

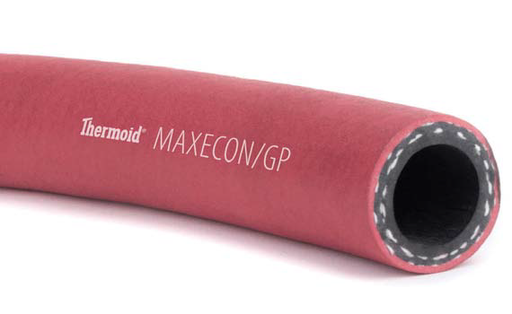

Maxecon is an excellent general purpose air and water service hose that can be used by all industries. It is non-conductive and offers a medium-high oil resistance. Maxecon offers dependable and solid performance with two working pressures: 250 or 300 psi in varying sizes up to 1-1/2" I.D. Its durable cover resists abrasion, weathering and ozone. Maxecon’s multi-spiral polyester yarn reinforcement makes this hose durable, flexible and helps eliminate kinks. Maxecon is the ideal hose for use in mining, steel or petroleum applications. Note: Not recommended for fuel applications.

Specifications for Variant SKU: 00336506400 Thermoid
Brand: Maxecon
Series: GP General Purpose Air and Water Hose
Hose Color(s): Red
Internal Diameter: 0.375in
Outer Diameter: 0.69in
Tubing Construction: Nitrile Blend
Cover Construction: Nitrile Blend

SPECIFICATIONS

Application: Maxecon is an excellent general purpose air and water service hose that can be used by all industries. SAE Rating: N/A
Other Ratings: N/A Tube: Nitrile blend, RMA Class A
Reinforcement: Spiral polyester yarn Cover: Nitrile blend, RMA Class B
Temperature Range: -20 Deg. F to +160 Deg. F or 180 Deg. F (Intermittent) (-29 Deg. C to +71 Deg. C or 82 Deg. C (Intermittent)) Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
Medium Oil Resistant Cover. High Oil Resistant Tube.
Part Number Nominal Inner Diameter Nominal Outside Diameter Reinforcement Spirals Working Pressure (PSI) Min. Bend Radius Weight (Lbs/Ft)
00336504300 .25" .50" 2 250 1.50" 0.08
00336504400 .25" .62" 4 300 1.50" 0.13
00336505300 .3125" .63" 2 250 2.00" 0.14
00336506300 .375" .69" 4 250 2.25" 0.17
00336506400 .375" .71" 4 300 2.25" 0.17
00336508300 .50" .84" 4 250 3.00" 0.24
00336508400 .50" .84" 4 300 3.00" 0.24
00336510400 .625" 1.00" 4 300 3.75" 0.28
00336512300 .75" 1.15" 4 250 4.50" 0.36
00336512400 .75" 1.15" 4 300 4.50" 0.40
00336512454 .75" 1.15" 4 300 4.50" 0.40
00336516300 1" 1.43" 4 250 7.00" 0.49
00336516400 1" 1.43" 4 300 7.00" 0.58
00336520300 1.25" 1.78" 4 250 8.75" 0.78
00336524300 1.50" 2.03" 4 250 10.50" 0.90

Bulk / By the Foot : We sell hose in Bulk Lengths unless you agree to purchase at a by the foot price as listed above in an options selector. This means we make every effort to provide exact single lengths, however with manufacturer guidelines on bulk hose, your order may come in multiple lengths and may be plus or minus 10% of your bulk order. If you require ONE length in a specific length you must specify by the drop down selector that you will be paying a premium for a single length. There are no exceptions to the bulk guidelines and all prices listed on our website are in bulk price. By ordering through our website you agree that you have read, fully understand and agree to these terms and conditions.

Thermoid

Thermoid

Established in 1883, Thermoid produces one of the broadest lines of industrial rubber products available anywhere in the world. Made in the USA, our industrial hose products are selected and used by thousands of industrial customers and OEMs around the world.
