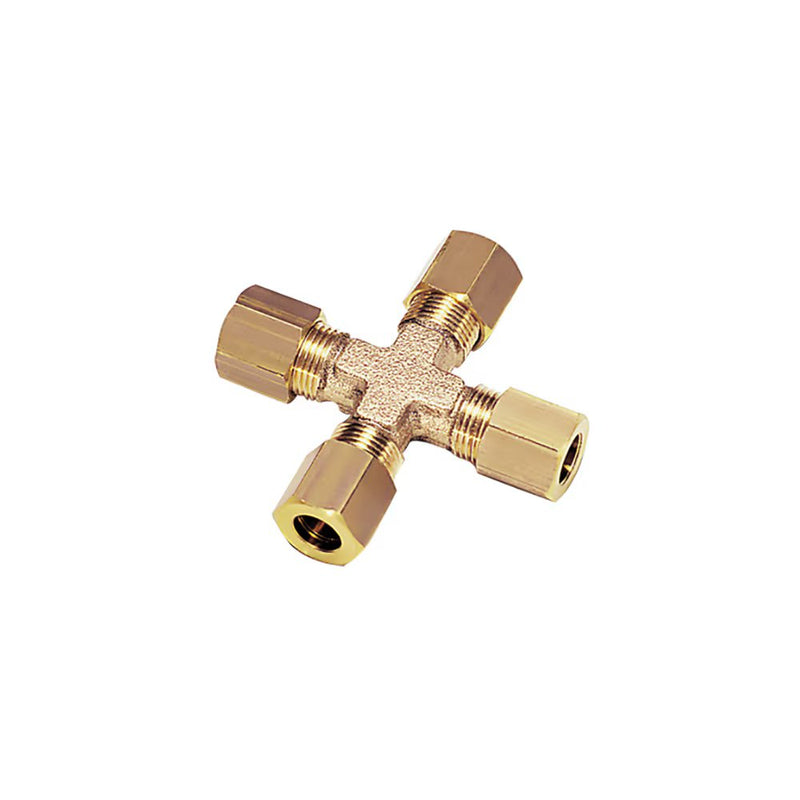

0107 12 00 by Parker | Legris Tube-to-Tube | 12 mm Tube Size | 22 mm Hex | 70 mm Length | Cross | Brass | Pack of 5

Save $21.12

$232.36

$232.36 - $232.36

$232.36

$211.24

$211.24 - $211.24

$211.24

by Parker Hannifin
Brass Compression Fittings / Tube-to-Tube Fittings:0107 Equal Cross

Package Quantity: 5 Units

Quantity

Specifications for Variant SKU: 0107 12 00 Parker \| 5 \|
Series:	0107 Series
Shape (Orientation):	Cross
Material(s):	Brass
Special Properties:	Fuel Grade

Technical Characteristics:	Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants Working Pressure: Vacuum to 550 bar Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:	22 configurations Excellent sealing due to the tightening of the olive onto the tube Metallic sealing for optimum service life, pressure, and temperature ranges Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc. Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:	RoHS PED REACH
Component Materials:


Part Number	ØD	F	H	J	L/2	Kg
0107 08 00	8 mm	14 mm	15 mm	11 mm	28 mm	.073 Kg
0107 10 00	10 mm	19 mm	14.5 mm	14 mm	30 mm	.141 Kg
0107 12 00	12 mm	22 mm	15 mm	15 mm	35 mm	..231 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
