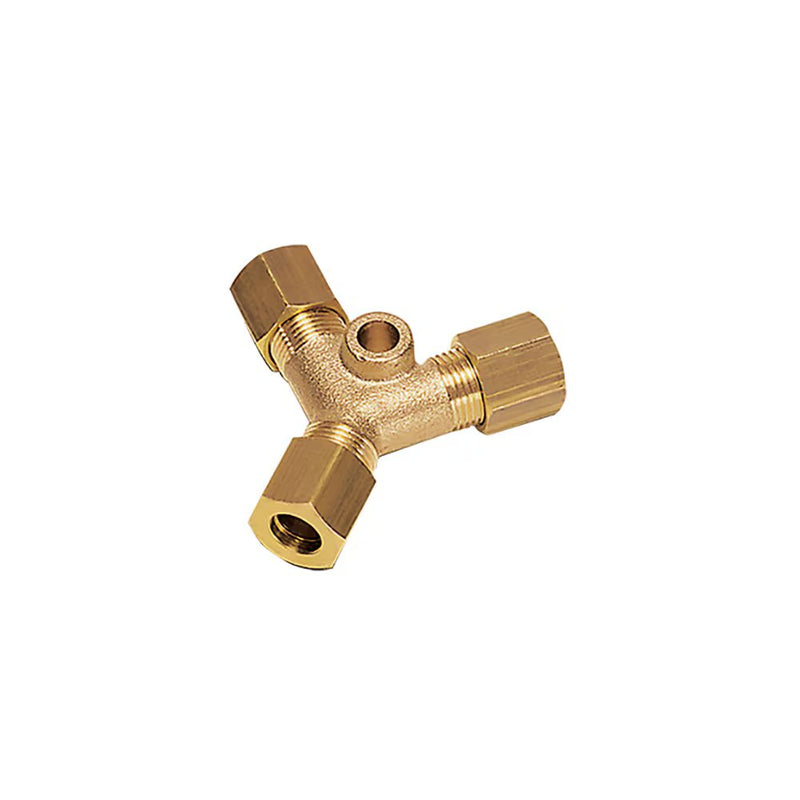

0142 10 00 by Parker | Legris Brass Metrics Compression | Union | 10mm Tube OD w/ Mounting Boss | Y | Brass | Pack of 10

Save $232.27

$580.68

$580.68 - $580.68

$580.68

$348.41

$348.41 - $348.41

$348.41

by Parker Hannifin
Brass Compression Fittings / Tube-to-Tube Fittings:0142 Equal Y Piece with Mounting Boss

Package Quantity: 10 Units

Specifications for Variant SKU: 0142 10 00 Parker \| 10 \|
Series:	0142 Series
Shape (Orientation):	Y
Material(s):	Brass
Special Properties:	Fuel Grade

Technical Characteristics:	Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants Working Pressure: Vacuum to 550 bar Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:	22 configurations Excellent sealing due to the tightening of the olive onto the tube Metallic sealing for optimum service life, pressure, and temperature ranges Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc. Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:	RoHS PED REACH
Component Materials:


Part Number	ØD	F	H (max)	H1	L (max)	L1	ØT	Kg
0142 10 00	10 mm	19 mm	24.5 mm	9 mm	37.5 mm	22 mm	6.2 mm	.128 Kg
0142 12 00	12 mm	22 mm	26 mm	11 mm	38 mm	23 mm	6.2 mm	.110 Kg
