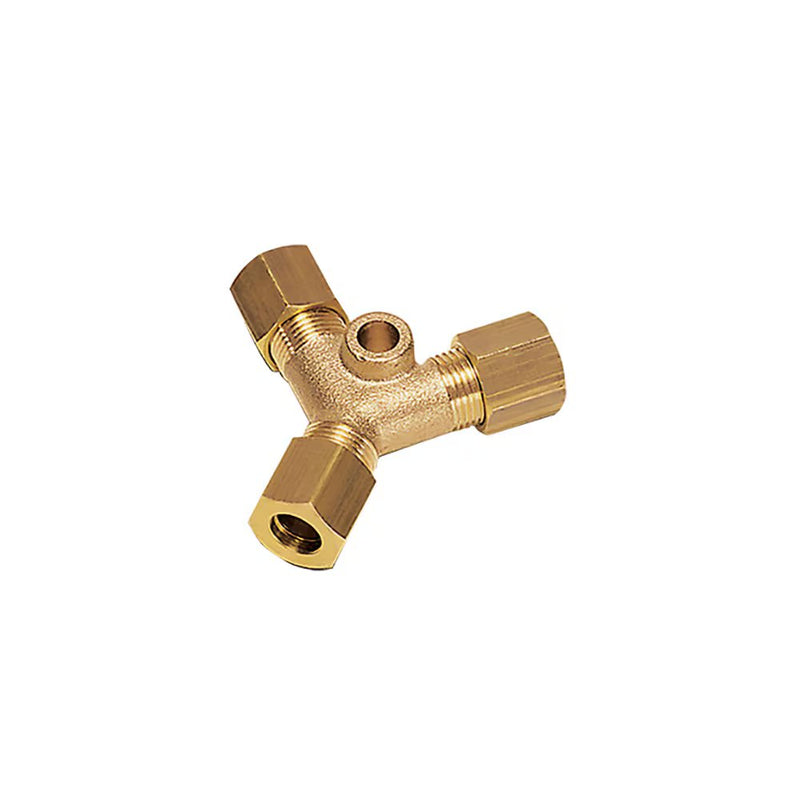

0142 12 00 by Parker | Legris Brass Metrics Compression | Union | 12 mm Tube OD w/ Mounting Boss | Y | Brass

0142 12 00 by Parker | Legris Brass Metrics Compression | Union | 12 mm Tube OD w/ Mounting Boss | Y | Brass | Pack of 10

Save $37.64 Save $37.64
$413.99
$413.99 - $413.99
$413.99
$376.35
$376.35 - $376.35
$376.35

by Parker Hannifin
Brass Compression Fittings / Tube-to-Tube Fittings:0142 Equal Y Piece with Mounting Boss

Package Quantity: 10 Units

Specifications for Variant SKU: 0142 12 00 Parker | 10 |
Series: 0142 Series
Shape (Orientation): Y
Material(s): Brass
Special Properties: Fuel Grade
Technical Characteristics:
  • Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants
  • Working Pressure: Vacuum to 550 bar
  • Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:
  • 22 configurations
  • Excellent sealing due to the tightening of the olive onto the tube
  • Metallic sealing for optimum service life, pressure, and temperature ranges
  • Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc.
  • Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
Part Number ØD F H (max) H1 L (max) L1 ØT Kg
0142 04 00 4 mm 10 mm 16.5 mm 7 mm 26.5 mm 17 mm 4.2 mm .031 Kg
0142 06 00 6 mm 13 mm 19.5 mm 8.5 mm 28 mm 17 mm 4.2 mm .047 Kg
0142 10 00 10 mm 19 mm 24.5 mm 9 mm 37.5 mm 22 mm 6.2 mm .128 Kg
0142 12 00 12 mm 22 mm 26 mm 11 mm 38 mm 23 mm 6.2 mm .110 Kg
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
