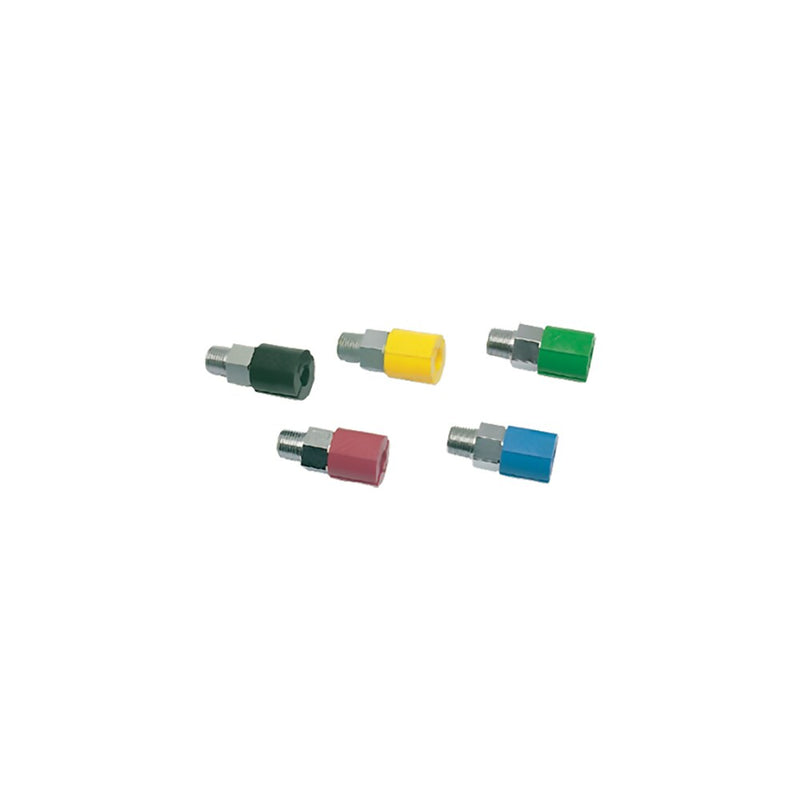

0171 03 10 03 by Parker | Legris Coupler Quick Disconnect | 3 Diameter Nominal x 1/8" Male BSPT Thread | 13 mm Hex | Red | Straight | Nickel-Plated Brass | Pack of 10

0171 03 10 03 by Parker | Legris Coupler Quick Disconnect | 3mm Diameter Nominal x 1/8" Male BSPT Thread | 13 mm Hex | Red | Straight | Nickel-Plated Brass | Pack of 10

Save $85.42 Save $85.42
$213.55
$213.55 - $213.55
$213.55
$128.13
$128.13 - $128.13
$128.13

by Parker Hannifin
Metal Quick-Acting Couplers:0171 Coupler without valve, Male BSPT Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 0171 03 10 03 Parker | 10 |
Series: 0171 Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass, Polymer
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Ergonomic
Mini Series: The mini series offer space saving solutions for frequent disconnection of tubing or pneumatic tools.
  • Compact and ergonomic
  • Easy identification of circuits
  • Easy disconnection / single hand operation
Working Pressure:
  • up to 20 bar
Material:
  • Coupling: Technical Polymer, Nickel-Plated Brass
  • Plug: Nickel-Plated Brass
  • Seals: NBR
Working Temperature:
  • -20°C up to +60°C (NBR)
Flow Rate Air:
  • 165 Nl/min. (inlet pressure 6 bar, pressure dop 0.6 bar)
Part Number Diameter Nominal (DN) C F G L Kg
0171 03 10 01 3 1/8" 13 mm 17 mm 24.5 mm .02 Kg
0171 03 10 02 3 1/8" 13 mm 17 mm 24.5 mm .02 Kg
0171 03 10 03 3 1/8" 13 mm 17 mm 24.5 mm .02 Kg
0171 03 10 04 3 1/8" 13 mm 17 mm 24.5 mm .02 Kg
0171 03 10 05 3 1/8" 13 mm 17 mm 24.5 mm .02 Kg

Straight-through
