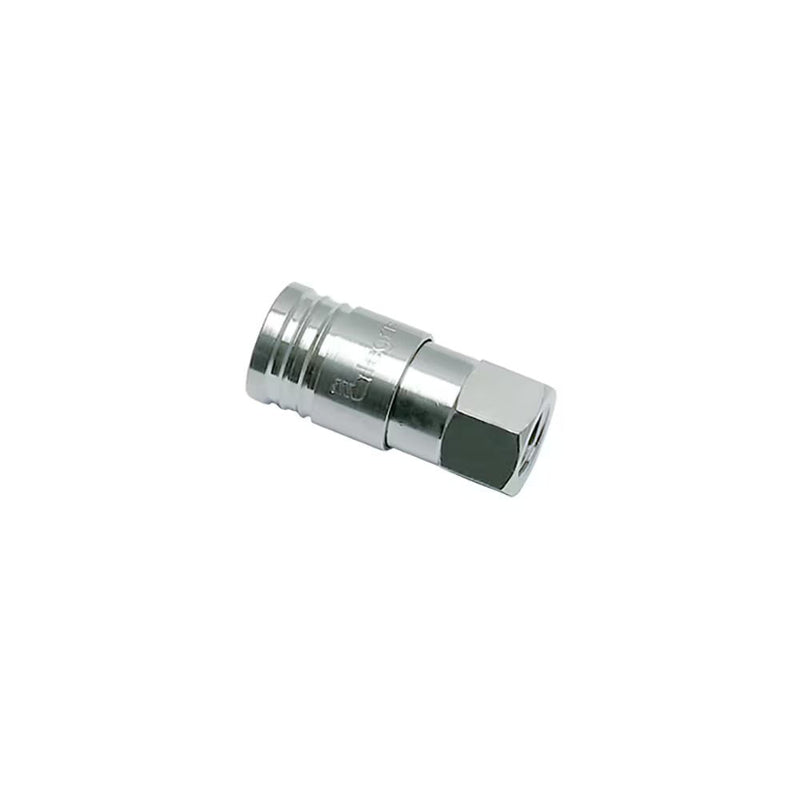

0172 05 13 by Parker | Legris Coupler Quick Disconnect | 1/4" Female BSPP Thread | 19 mm Hex | 47 mm Length | Straight | Nickel-Plated Brass | Pack of 10

Save $188.00

$470.00

$470.00 - $470.00

$470.00

$282.00

$282.00 - $282.00

$282.00

by Parker Hannifin
Metal Quick-Acting Couplers:0172 Coupler with valve, Female BSPP Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 0172 05 13 Parker \| 10 \|
Series:	0172 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Corrosion Resistance

Standard Series:	The standard range offers a robust solutions and a good compromise between space and flow performance. Robust and adapted to demanding application Good corrosion resistance thanks to nickel plating
Working Pressure:	up to 20 bar
Material:	Coupling: Nickel-Plated Brass Plug: Zinc Plated Blister Steel Seals: NBR
Working Temperature:	-20°C up to +80°C (NBR)
Flow Rate Air:	480 Nl/min. (inlet pressure 6 bar, pressure dop 0.6 bar)


Part Number	Diameter Nominal (DN)	C	E	F	G	L	Kg
0172 05 13	5	1/4"	11 mm	19 mm	21 mm	47 mm	.086 Kg

Standard Series: single shut-off = 480 Nl/min
