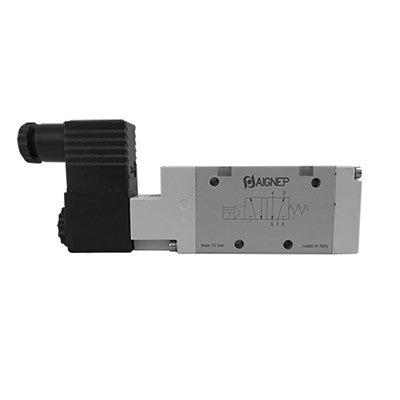

01VS0500030501 AIGNEP | 01V Control Valves Series | 5/2 Single Solenoid Pilot Valve/Spring Return 1/4" | 110V AC/5VA coil | Black Con

01VS0500030501 by AIGNEP | 01V Control Valves Series | 5/2 Single Solenoid Pilot Valve/Spring Return 1/4" | 110V AC/5VA coil | Black Con

Name: 01VS0500030501 by AIGNEP | 01V Control Valves Series | 5/2 Single Solenoid Pilot Valve/Spring Return 1/4" | 110V AC/5VA coil | Black Con
Brand: AIGNEP
SKU: 01VS0500030501 AIGNEP
Price: 63.81 USD
Availability: InStock

Save $0.65

$64.46

$64.46 - $64.46

$64.46

$63.81

$63.81 - $63.81

$63.81

Quantity

Specifications for Variant SKU: 01VS0500030501 AIGNEP
Series:	01V Control Valves Series
Ends Configuration:	1/4in Female BSPP, 1/4in Female BSPP, Some Ends Match
Material(s):	Plastic

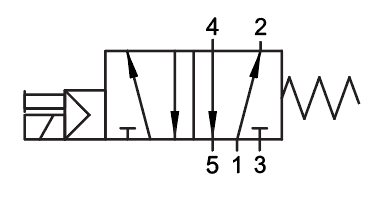

SOLENOID PILOT VALVE

Technical Characteristics:
Operating Rating:	0 ÷ 10 bar 0 ÷ 145 psi	Operating Pressure:	Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature:	Min: 14°F (-10°C) Max: 140°F (60°C)	Component Parts and Materials:	• Anodised and painted aluminium body (1/8 - 1/4 - 1/2) • Anodised aluminium body (3/8) • Chemical nickel-plated spool • NBR seals

Part Number (Black Con)	Part Number (LED Con)	Solenoid Voltage	Minimum Power	Ways	Reactuation	Size
01VS0500020101	01VS0500020102	12V DC	3W	5/2	Monostable Spring Return	G 1/8"
01VS0500020201	01VS0500020202	24V DC	3W	5/2	Monostable Spring Return	G 1/8"
01VS0500020301	01VS0500020302	24V DC	2W	5/2	Monostable Spring Return	G 1/8"
01VS0500020401	01VS0500020402	24V AC	5VA	5/2	Monostable Spring Return	G 1/8"
01VS0500020501	01VS0500020502	110V AC	5VA	5/2	Monostable Spring Return	G 1/8"
01VS0500020601	01VS0500020602	220V AC	5VA	5/2	Monostable Spring Return	G 1/8"
01VS0500030101	01VS0500030102	12V DC	3W	5/2	Monostable Spring Return	G 1/4"
01VS0500030201	01VS0500030202	24V DC	3W	5/2	Monostable Spring Return	G 1/4"
01VS0500030301	01VS0500030302	24V DC	2W	5/2	Monostable Spring Return	G 1/4"
01VS0500030401	01VS0500030402	24V AC	5VA	5/2	Monostable Spring Return	G 1/4"
01VS0500030501	01VS0500030502	110V AC	5VA	5/2	Monostable Spring Return	G 1/4"
01VS0500030601	01VS0500030602	220V AC	5VA	5/2	Monostable Spring Return	G 1/4"
01VS0500050101	01VS0500050102	12V DC	3W	5/2	Monostable Spring Return	G 1/2"
01VS0500050201	01VS0500050202	24V DC	3W	5/2	Monostable Spring Return	G 1/2"
01VS0500050301	01VS0500050302	24V DC	2W	5/2	Monostable Spring Return	G 1/2"
01VS0500050401	01VS0500050402	24V AC	5VA	5/2	Monostable Spring Return	G 1/2"
01VS0500050501	01VS0500050502	110V AC	5VA	5/2	Monostable Spring Return	G 1/2"
01VS0500050601	01VS0500050602	220V AC	5VA	5/2	Monostable Spring Return	G 1/2"

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
