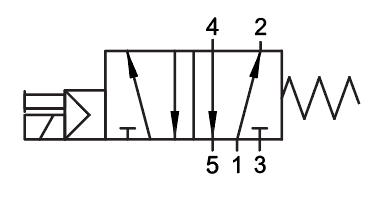

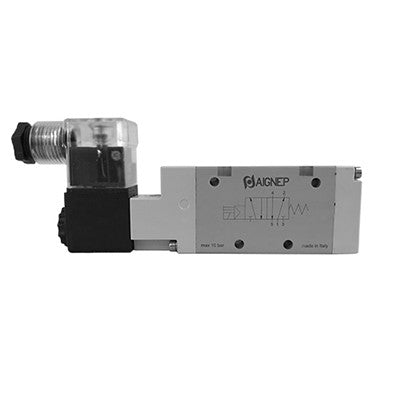

01VS0500020202 AIGNEP | 01V Control Valves Series | 5/2 Single Solenoid Pilot/Spring Return G-Thread 1/8" | 24V DC/3W coil | LED Con
01VS0500020202 by AIGNEP | 01V Control Valves Series | 5/2 Single Solenoid Pilot/Spring Return G-Thread 1/8" | 24V DC/3W coil | LED Con
01VS0500020202 AIGNEP | 01V Control Valves Series | 5/2 Single Solenoid Pilot/Spring Return G-Thread 1/8" | 24V DC/3W coil | LED Con

01VS0500020202 by AIGNEP | 01V Control Valves Series | 5/2 Single Solenoid Pilot/Spring Return G-Thread 1/8" | 24V DC/3W coil | LED Con

Save $15.37 Save $15.37
$86.73
$86.73 - $86.73
$86.73
$71.36
$71.36 - $71.36
$71.36
Specifications for Variant SKU: 01VS0500020202 AIGNEP
Series: 01V Control Valves Series
Ends Configuration: 1/8in Female BSPP, 1/8in Female BSPP, Some Ends Match
Material(s): Plastic
SOLENOID PILOT VALVE
Technical Characteristics:
Operating Rating: 0 ÷ 10 bar
0 ÷ 145 psi		 Operating Pressure: Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi
Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature: Min: 14°F (-10°C)
Max: 140°F (60°C)		 Component Parts and Materials: • Anodised and painted aluminium body (1/8 - 1/4 - 1/2)
• Anodised aluminium body (3/8)
• Chemical nickel-plated spool
• NBR seals
Part Number (Black Con) Part Number (LED Con) Solenoid Voltage Minimum Power Ways Reactuation Size
01VS0500020101 01VS0500020102 12V DC 3W 5/2 Monostable Spring Return G 1/8"
01VS0500020201 01VS0500020202 24V DC 3W 5/2 Monostable Spring Return G 1/8"
01VS0500020301 01VS0500020302 24V DC 2W 5/2 Monostable Spring Return G 1/8"
01VS0500020401 01VS0500020402 24V AC 5VA 5/2 Monostable Spring Return G 1/8"
01VS0500020501 01VS0500020502 110V AC 5VA 5/2 Monostable Spring Return G 1/8"
01VS0500020601 01VS0500020602 220V AC 5VA 5/2 Monostable Spring Return G 1/8"
01VS0500030101 01VS0500030102 12V DC 3W 5/2 Monostable Spring Return G 1/4"
01VS0500030201 01VS0500030202 24V DC 3W 5/2 Monostable Spring Return G 1/4"
01VS0500030301 01VS0500030302 24V DC 2W 5/2 Monostable Spring Return G 1/4"
01VS0500030401 01VS0500030402 24V AC 5VA 5/2 Monostable Spring Return G 1/4"
01VS0500030501 01VS0500030502 110V AC 5VA 5/2 Monostable Spring Return G 1/4"
01VS0500030601 01VS0500030602 220V AC 5VA 5/2 Monostable Spring Return G 1/4"
01VS0500050101 01VS0500050102 12V DC 3W 5/2 Monostable Spring Return G 1/2"
01VS0500050201 01VS0500050202 24V DC 3W 5/2 Monostable Spring Return G 1/2"
01VS0500050301 01VS0500050302 24V DC 2W 5/2 Monostable Spring Return G 1/2"
01VS0500050401 01VS0500050402 24V AC 5VA 5/2 Monostable Spring Return G 1/2"
01VS0500050501 01VS0500050502 110V AC 5VA 5/2 Monostable Spring Return G 1/2"
01VS0500050601 01VS0500050602 220V AC 5VA 5/2 Monostable Spring Return G 1/2"

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
