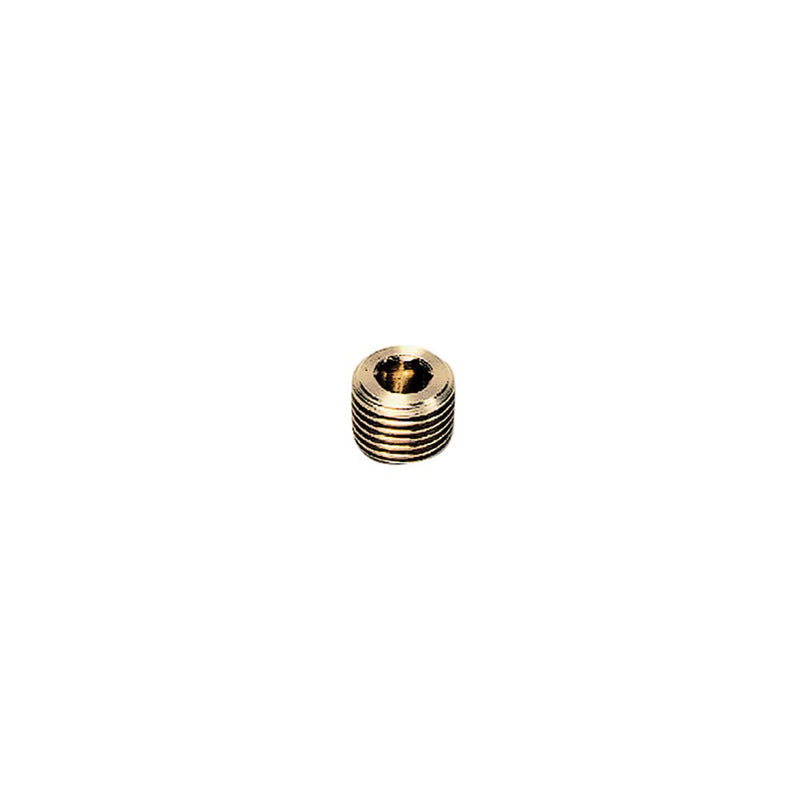

0205 27 00 by Parker | Legris Internal Hex Head Plug | 3/4" Male BSPT Thread | 14 mm Hex | 17 mm Length | Brass | Pack of 10

Save $10.27

$113.01

$113.01 - $113.01

$113.01

$102.74

$102.74 - $102.74

$102.74

by Parker Hannifin
Brass Plugs:0205 Internal Hexagon Head Plug, Male BSPT Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 0205 27 00 Parker \| 10 \|
Series:	0205 Series
Shape (Orientation):	No Orientation
Material(s):	Brass


Adapters and Manifolds:


Part Number	C	E1	E2 (max)	E2 (min)	F	G	H	Kg
0205 10 00	1/8"	6 mm	4.9 mm	3.1 mm	5 mm	9.7 mm	8 mm	.003 Kg
0205 13 00	1/4"	8 mm	7.3 mm	4.7 mm	6 mm	13.2 mm	10 mm	.007 Kg
0205 17 00	3/8"	8 mm	7.7 mm	5.1 mm	8 mm	16.7 mm	11 mm	.013 Kg
0205 21 00	1/2"	8 mm	10 mm	6.4 mm	10 mm	21 mm	13 mm	.026 Kg
0205 27 00	3/4"	11 mm	11.3 mm	7.7 mm	14 mm	26.5 mm	17 mm	.053 Kg
0205 34 00	1"	13 mm	12.7 mm	8.1 mm	17 mm	33.2 mm	19 mm	.094 Kg
0205 42 00	1-1/4"	14 mm	15 mm	10.4 mm	22 mm	42 mm	22 mm	.178 Kg
0205 49 00	1-1/2"	14 mm	15 mm	10.4 mm	24 mm	47.8 mm	22 mm	.243 Kg
0205 48 00	2"	16 mm	18.2 mm	13.6 mm	30 mm	59.6 mm	25 mm	.435 Kg

For BSPT plug from 1/2” - 1 1/2” inclusive:
Conforms to DIN 906.
Thread: EN 10226-0
