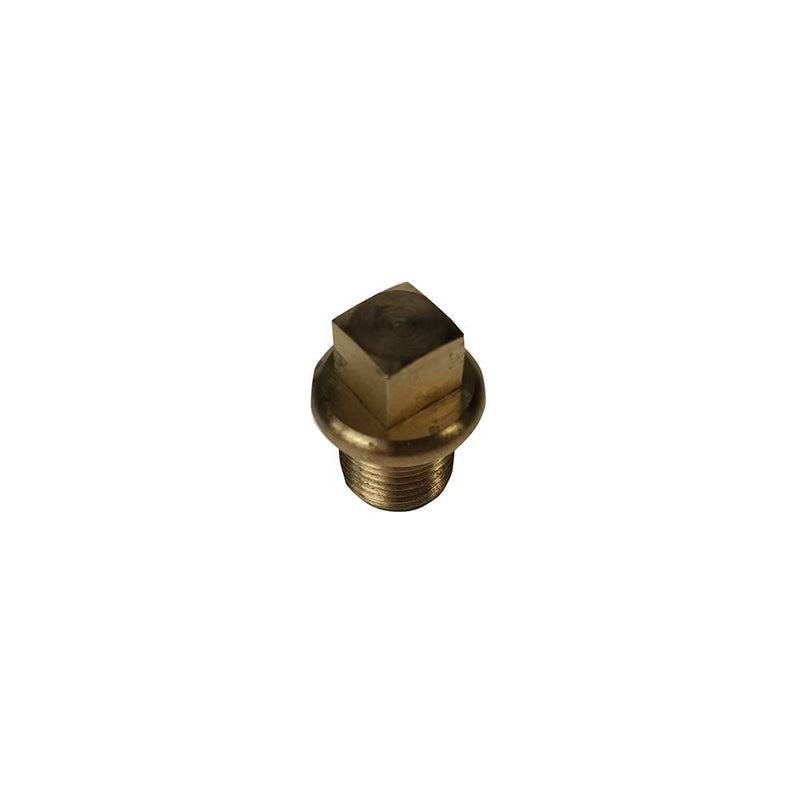

0209 21 00 by Parker | Legris Square Head Plug | 1/2" Male BSPT Thread | 13 mm Square | Brass | Pack of 10

Save $13.31

$146.41

$146.41 - $146.41

$146.41

$133.10

$133.10 - $133.10

$133.10

by Parker Hannifin
Brass Plugs:0209 Square Head Plug, Male BSPT Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 0209 21 00 Parker \| 10 \|
Series:	0209 Series
Shape (Orientation):	No Orientation
Material(s):	Brass


Adapters and Manifolds:


Part Number	C	E1	E2 (max)	E2 (min)	F	G	H	Kg
0209 10 00	1/8"	9 mm	4.9 mm	3.1 mm	9.7 mm	18 mm	6 mm	.009 Kg
0209 13 00	1/4"	11 mm	7.3 mm	4.7 mm	13.2 mm	20 mm	8 mm	.015 Kg
0209 17 00	3/8"	12 mm	7.7 mm	5.1 mm	16.7 mm	22 mm	10 mm	.025 Kg
0209 21 00	1/2"	15 mm	10 mm	6.4 mm	21 mm	26.5 mm	13 mm	.047 Kg
0209 27 00	3/4"	16.5 mm	11.3 mm	7.7 mm	26.4 mm	29 mm	17 mm	.097 Kg

Conforms to DIN 906.
Thread: EN 10226-1

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
