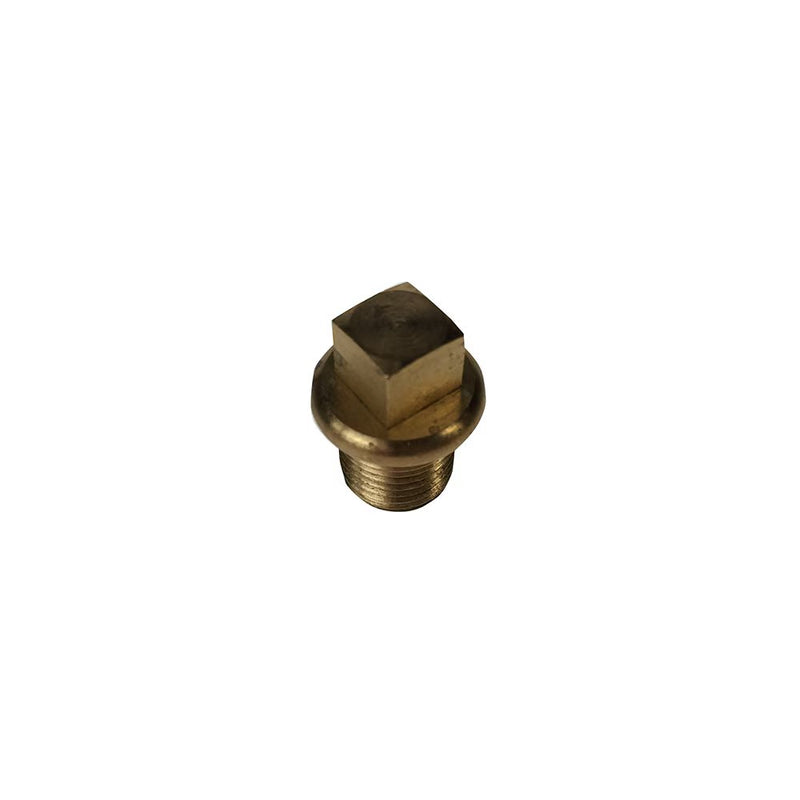

0209 13 00 by Parker | Legris Square Head Plug | 1/4" Male BSPT Thread | 8 mm Square | Brass | Pack of 10

Save $83.50

$208.75

$208.75 - $208.75

$208.75

$125.25

$125.25 - $125.25

$125.25

by Parker Hannifin
Brass Plugs:0209 Square Head Plug, Male BSPT Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 0209 13 00 Parker \| 10 \|
Series:	0209 Series
Shape (Orientation):	No Orientation
Material(s):	Brass


Adapters and Manifolds:


Part Number	C	E1	E2 (max)	E2 (min)	F	G	H	Kg
0209 10 00	1/8"	9 mm	4.9 mm	3.1 mm	9.7 mm	18 mm	6 mm	.009 Kg
0209 13 00	1/4"	11 mm	7.3 mm	4.7 mm	13.2 mm	20 mm	8 mm	.015 Kg
0209 17 00	3/8"	12 mm	7.7 mm	5.1 mm	16.7 mm	22 mm	10 mm	.025 Kg
0209 21 00	1/2"	15 mm	10 mm	6.4 mm	21 mm	26.5 mm	13 mm	.047 Kg
0209 27 00	3/4"	16.5 mm	11.3 mm	7.7 mm	26.4 mm	29 mm	17 mm	.097 Kg

Conforms to DIN 906.
Thread: EN 10226-1
