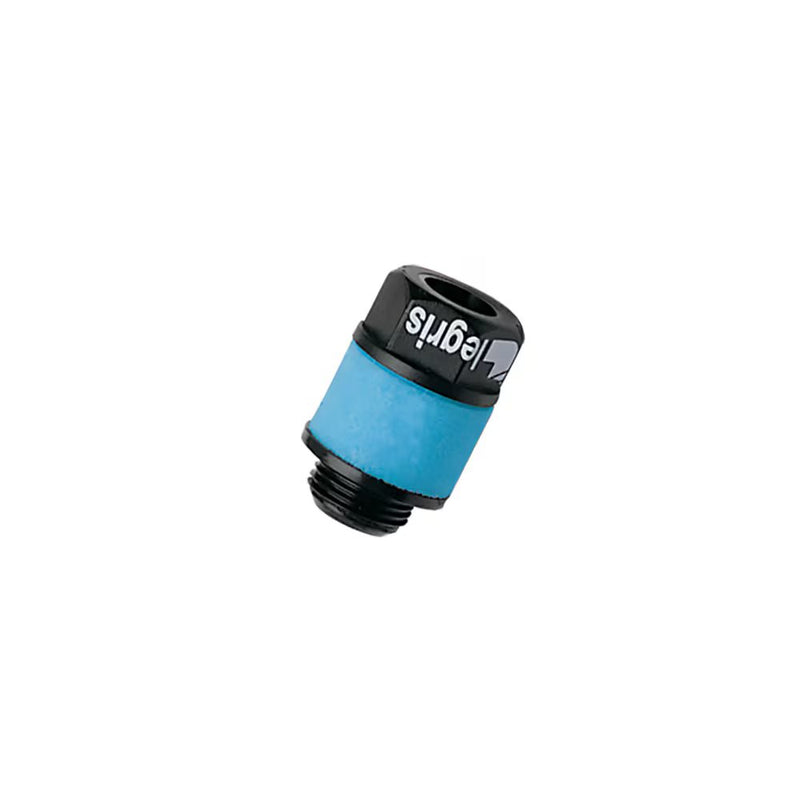

0676 00 19 by Parker | Legris Flow Control Silencer | M5x0.8 Male M5 Thread | 16 mm Length | Polyethylene/Plastic | Pack of 10

Save $2.61

$141.81

$141.81 - $141.81

$141.81

$139.20

$139.20 - $139.20

$139.20

by Parker Hannifin
Silencers:0676 Flow Control Polymer Silencer, Male BSPP and Metric Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 0676 00 19 Parker \| 10 \|
Series:	0676 Series
Shape (Orientation):	No Orientation
Material(s):	Polyethylene, Plastic
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Polyethylene: 0 to 10 bar Sintered bronze: 0 to 12 bar 316L Stainless Steel: 0 to 12 bar Working Temperature: Polyethylene: -10°C to +80°C Sintered bronze: -20°C to +150°C 316L Stainless Steel: -20°C to +180°C
Advantages:	3 materials available - Polyethylene: optimum exhaust flow rate and noise attention - Sintered bronze: robust and economic - 316L stainless Steel: increased chemical and mechanical resistance incorporated flow control regulator on 2 versions
Regulations:	RoHS PED REACH 2003/10/CE OSHA
Component Materials:	Body: Brass (0670-0673-0675-0671-0677-0672) Polymer (0674-0676) Stainless Steel (0682-0683) Silencer: Sintered Bronze (0670-0673-0675-0671-0677-0672) Polymer (0674-0676) Stainless Steel (0682-0683)


Part Number	BSPP (C)	F	F1	G	L	L1	L2	Wt (Oz)
0676 00 19	M5x0.8	8 mm	1.5 mm	9.2 mm	16 mm	11 mm	-	-
0676 00 10	G1/8"	2.5 mm	13 mm	15 mm	20.5 mm	14.5 mm	5 mm	.002 oz
0676 00 13	G1/4"	4 mm	15 mm	18 mm	29 mm	22 mm	7 mm	.007 oz
0676 00 17	G3/8"	6 mm	20 mm	24 mm	38.5 mm	31 mm	-	.018 oz
0676 00 21	G1/2"	8 mm	25 mm	31 mm	50 mm	41 mm	-	.045 oz

* dBA at 87 PSI and 12 SCFM
