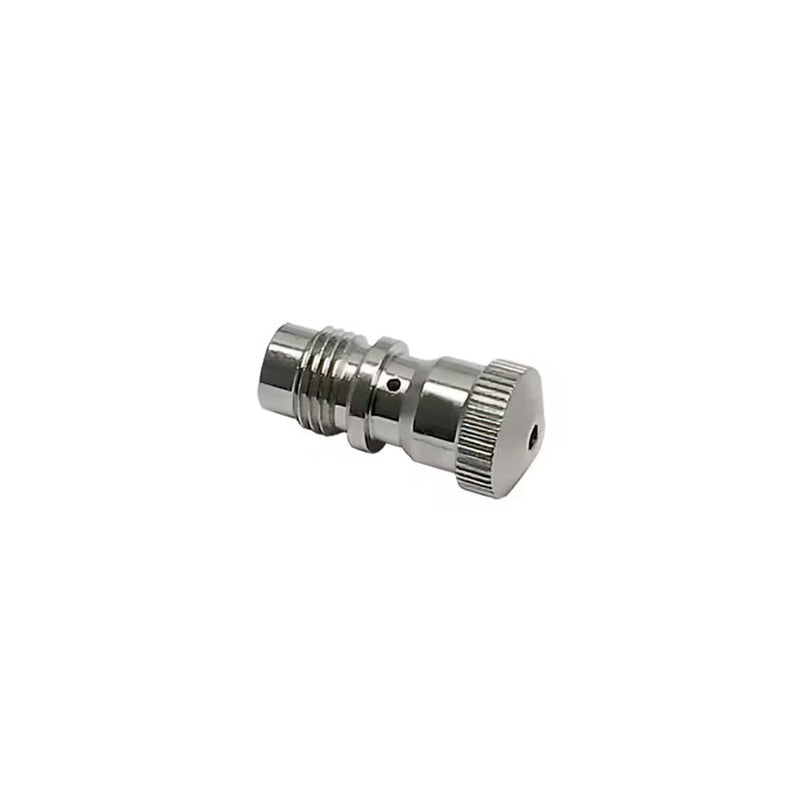

0690 02 00 by Parker | Legris Safety Nozzle | M12x1.25 Male Metric Thread | 31 mm Length | Straight | Nickel-Plated Brass | Pack of 5

Save $71.69

$179.22

$179.22 - $179.22

$179.22

$107.53

$107.53 - $107.53

$107.53

by Parker Hannifin
Value-Added Polymer Blowguns:0690 02 Safety Nozzle

Package Quantity: 5 Units

Specifications for Variant SKU: 0690 02 00 Parker \| 5 \|
Series:	0690 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Special Properties:	Silicone Free, Short

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 0 to 10 bar Working Temperature: Air: -15°C to +50°C Dry Air: -20°C to +80°C Tubes: Tubes and hoses
Advantages:	Basic & standard blowguns: In compliance with international noise and pressure regulations Swivel nozzles for directional jet Safety blowguns: Meets OSHA or SUVA standards according to model and complies with: - noise exposure requirements - provisions relating to outlet pressure Energy-saving blowguns Limited flow for lower energy consumption Kits and nozzles: to ensure a suitable product
Regulations:	RoHS PED REACH OSHA Protection of design: All designs and models of Parker Legris blowguns have been registered with the following numbers: 13 224 / 13 225 / 13 226 DI: 2003/10/CE Regulation relating to exposure to noise, particularly with regard to risks to hearing. The noise level must be less than 87 dBA.
Component Materials:	Body: Technical Polymer Connection: Nickel-Plated Brass Nozzle: - Aluminum (standard blowgun) - Nickel-Plated Brass (Safety and other blowguns) Trigger: Technical Polymer


Part Number	Diameter Nominal (DN)	C	G	L	L1	Kg
0690 02 00	2.5 mm	M12x1.25	15 mm	31 mm	9 mm	.024 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
