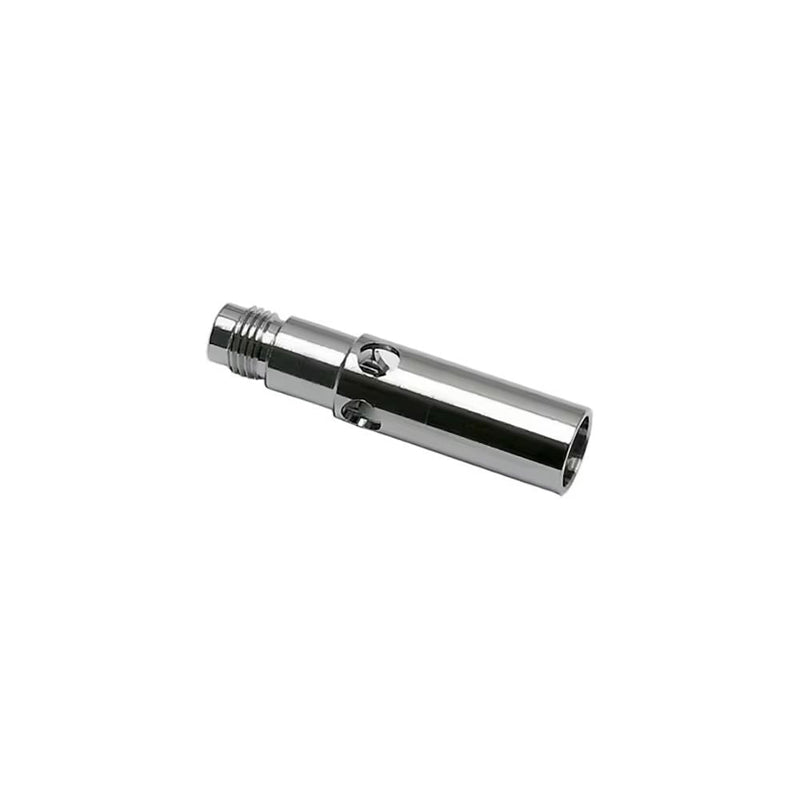

0690 10 00 by Parker | Legris Safety Booster Nozzle | M12x1.25 Male Metric Thread | 64 mm Length | Straight | Nickel-Plated Brass | Pack of 5

Save $1.15

$41.55

$41.55 - $41.55

$41.55

$40.40

$40.40 - $40.40

$40.40

by Parker Hannifin
Value-Added Polymer Blowguns:0690 10 Safety Booster Nozzle

Package Quantity: 5 Units

Quantity

Specifications for Variant SKU: 0690 10 00 Parker \| 5 \|
Series:	0690 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Special Properties:	Silicone Free, Short

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 0 to 10 bar Working Temperature: Air: -15°C to +50°C Dry Air: -20°C to +80°C Tubes: Tubes and hoses
Advantages:	Basic & standard blowguns: In compliance with international noise and pressure regulations Swivel nozzles for directional jet Safety blowguns: Meets OSHA or SUVA standards according to model and complies with: - noise exposure requirements - provisions relating to outlet pressure Energy-saving blowguns Limited flow for lower energy consumption Kits and nozzles: to ensure a suitable product
Regulations:	RoHS PED REACH OSHA Protection of design: All designs and models of Parker Legris blowguns have been registered with the following numbers: 13 224 / 13 225 / 13 226 DI: 2003/10/CE Regulation relating to exposure to noise, particularly with regard to risks to hearing. The noise level must be less than 87 dBA.
Component Materials:	Body: Technical Polymer Connection: Nickel-Plated Brass Nozzle: - Aluminum (standard blowgun) - Nickel-Plated Brass (Safety and other blowguns) Trigger: Technical Polymer


Part Number	Diameter Nominal (DN)	C	G	L	L1	Kg
0690 10 00	2.5 mm	M12x1.25	15 mm	64 mm	42 mm	.038 Kg
