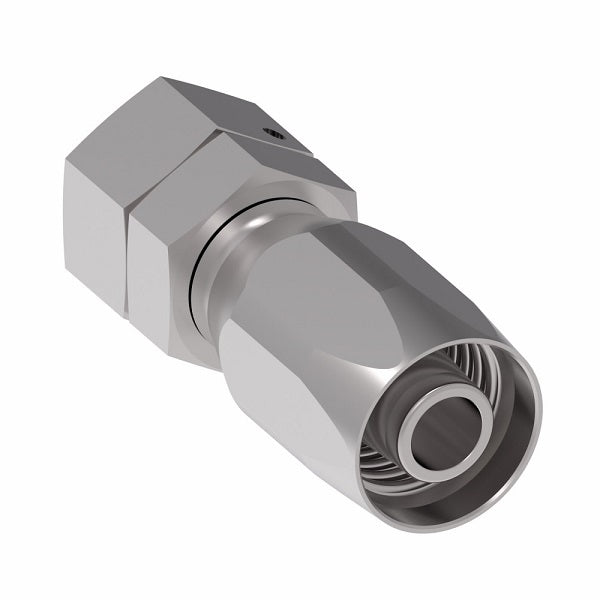

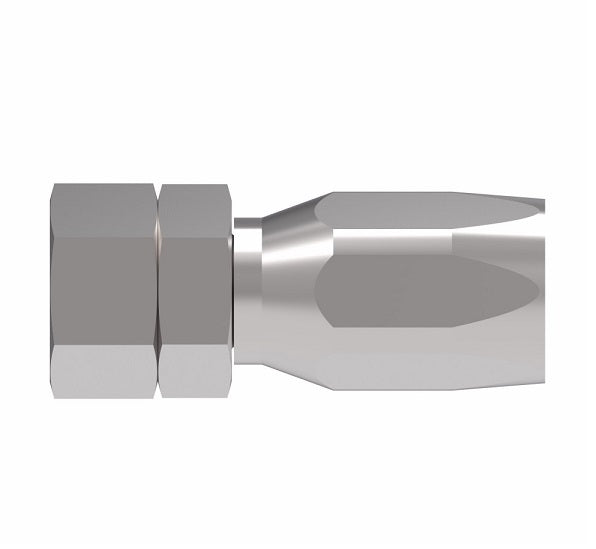

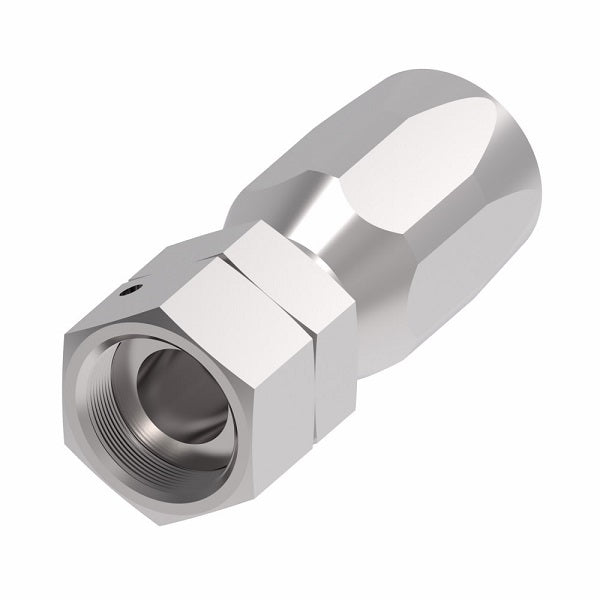

07.002-13-10 Aeroquip by Danfoss | Metric Female Swivel Light Duty 24° DIN 3901/3902 100R5 Reusable Hose Fitting | L13 Female DKO/DIN x -10 Reusable Hose End | Steel

07.002-13-10 Aeroquip by Danfoss | Metric Female Swivel Light Duty 24° DIN 3901/3902 100R5 Reusable Hose Fitting | L13 Female DKO/DIN x -10 Reusable Hose End | Steel

Name: 07.002-13-10 Aeroquip by Danfoss | Metric Female Swivel Light Duty 24° DIN 3901/3902 100R5 Reusable Hose Fitting | L13 Female DKO/DIN x -10 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: 07.002-13-10 Danfoss
Price: 61.18 USD
Availability: InStock

$61.18 - $61.18

$61.18

$61.18 - $61.18

$61.18

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Metric Female Swivel Light Duty 24° DIN 3901/3902 - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 07.002-13-10 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	L13 Female DIN, 5/8in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	1503 Series \| 2580 Series \| 2651 \| FC234 Series \| FC300 Series \| FC321 Series \| FC350 Series \| FC355 Series \| FC802 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	EØ	RØ
07.002-8-6	-06	M16 x 1.5	2.22"	1.32"	0.24"	0.39"
07.002-13-10	-10	M22 x 1.5	2.87"	1.59"	0.45"	0.59"
07.002-16-12	-12	M26 x 1.5	3.29"	1.71"	0.55"	0.71"
