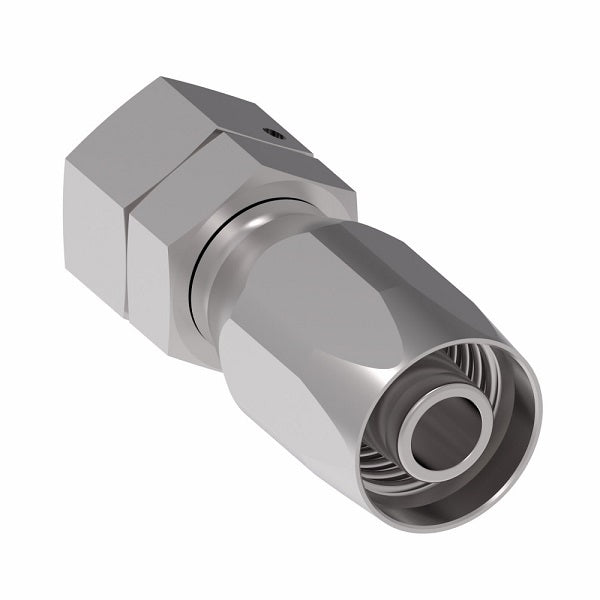

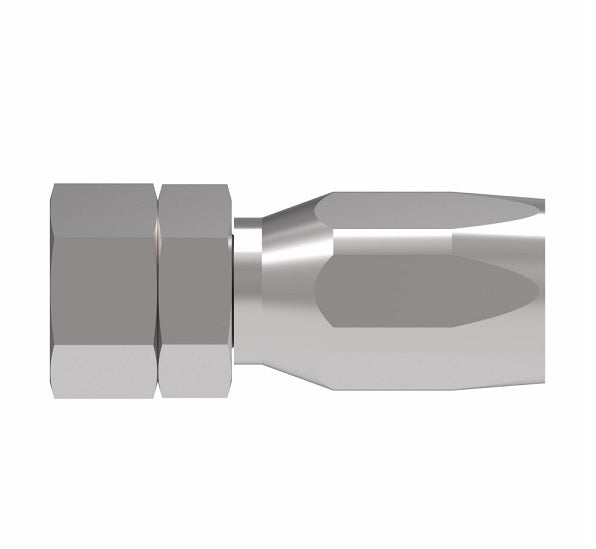

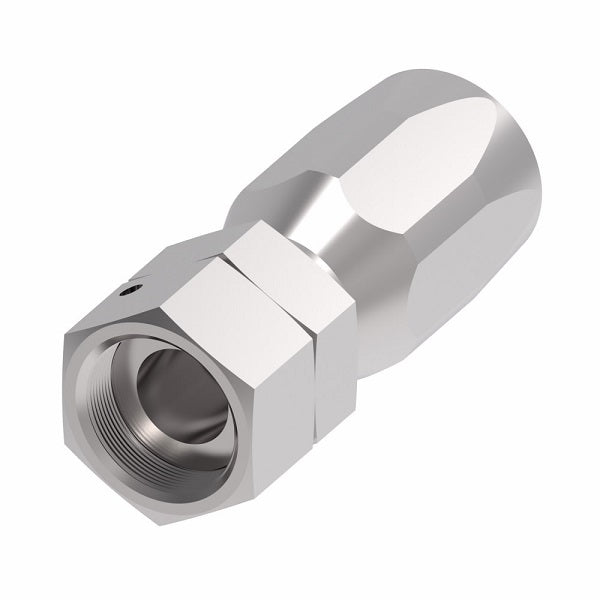

07.002-8-6 Aeroquip by Danfoss | Metric Female Swivel Light Duty 24° DIN 3901/3902 100R5 Reusable Hose Fitting | L08 Female DKO/DIN x -06 Reusable Hose End | Steel
07.002-8-6 Aeroquip by Danfoss | Metric Female Swivel Light Duty 24° DIN 3901/3902 100R5 Reusable Hose Fitting | L08 Female DKO/DIN x -06 Reusable Hose End | Steel
07.002-8-6 Aeroquip by Danfoss | Metric Female Swivel Light Duty 24° DIN 3901/3902 100R5 Reusable Hose Fitting | L08 Female DKO/DIN x -06 Reusable Hose End | Steel
07.002-8-6 Aeroquip by Danfoss | Metric Female Swivel Light Duty 24° DIN 3901/3902 100R5 Reusable Hose Fitting | L08 Female DKO/DIN x -06 Reusable Hose End | Steel

07.002-8-6 Aeroquip by Danfoss | Metric Female Swivel Light Duty 24° DIN 3901/3902 100R5 Reusable Hose Fitting | L08 Female DKO/DIN x -06 Reusable Hose End | Steel

$37.48 - $37.48
$37.48
$37.48 - $37.48
$37.48

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Metric Female Swivel Light Duty 24° DIN 3901/3902 - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 07.002-8-6 Danfoss
Shape (Orientation): Straight
Ends Configuration: L08 Female DIN, 3/8in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 1503 Series  |   2580 Series  |   2651  |   FC234 Series  |   FC300 Series  |   FC321 Series  |   FC350 Series  |   FC355 Series  |   FC802 Series
Technical Info:
Steel
Part Number 		Hose Size Thread A D EØ RØ
07.002-8-6 -06 M16 x 1.5 2.22" 1.32" 0.24" 0.39"
07.002-13-10 -10 M22 x 1.5 2.87" 1.59" 0.45" 0.59"
07.002-16-12 -12 M26 x 1.5 3.29" 1.71" 0.55" 0.71"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
